Unwanted hopper clogging, recurring silo bridging, powder caking and erratic material discharge are widespread headaches for bulk‑handling operations.
Processing plants dealing with thermal‑power‑plant fly ash, cement powder, biomass fuel and dewatered sludge often struggle with hardened lumps and stable material arches inside storage silos. Compaction under weight, moisture absorption and high‑temperature storage will make materials stick together, trigger frequent production halts and cut down your plant throughput.
Most site supervisors turn to conventional flow aids including air cannons and silo vibrators. Nevertheless, these passive tools can only deliver short‑term relief. They are unable to break rigid caked‑on deposits or permanently stop repeated silo arching. Workers have to spend long hours on manual silo cleaning, which pushes up labour costs and unplanned downtime. An active‑type mechanical lump‑breaking device becomes essential for steady‑run silo discharge.
What Is an Electric Lump‑Breaker?
An electric lump‑breaker (also known as lump‑breaker valve) is purpose‑built machinery for automated powder and granular‑material handling. Powered by an electric drive assembly, it completes core‑duty work such as lump breaking, silo arch breaking, hopper unclogging and consistent discharging.
Unlike temporary‑fix flow‑aid accessories, this heavy‑duty equipment physically breaks apart hardened agglomerations and eliminates material bridging at the source. It boasts a compact square‑flange housing, wear‑resistant cutter shafts and low‑maintenance structure. It fits multiple pipe sizes, material throughput rates and narrow‑space installation layouts. It is widely applied in silo discharging, dust‑removal conveying and waste‑treatment automated production lines.
Our comprehensive size lineup allows industrial engineers to select suitable units according to on‑site pipe diameter, material flow volume, installation footprint and system operating pressure. Our product range covers lightweight small‑bore pipelines all the way to heavy‑duty high‑capacity bulk‑processing lines.

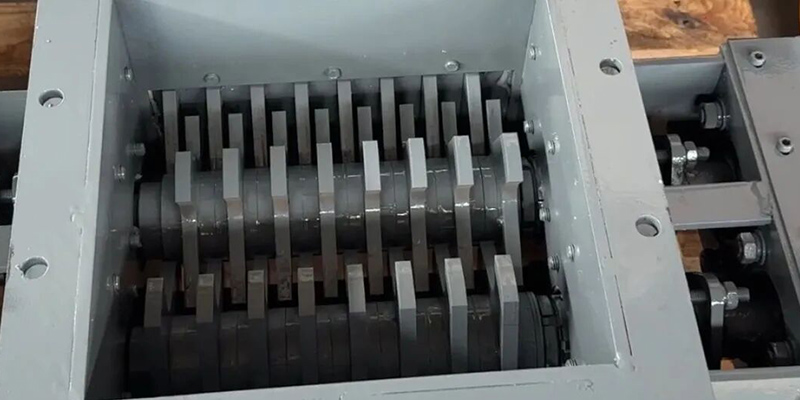

300×300 Electric Lump‑Breaker: The Best Choice for High‑Moisture Sludge Filter Cake
Sludge filter cake with 60‑percent moisture ranks among the trickiest sticky‑state materials for continuous hopper‑side operation. It easily leads to shaft jamming, inner‑wall material adhesion, sludge bridging and irregular outflow inside sludge‑dewatering and sewage‑treatment facilities. Ordinary discharge valves lack sufficient shearing torque to separate bonded sludge clumps and frequently bring about production interruptions.
The 300×300 lump‑breaker is engineered exclusively for viscous wet‑material working conditions. It delivers stable breaking force to smash compacted sludge lumps and clear hopper‑side material arches. Anti‑stick, abrasion‑resistant cutter components prevent material accumulation and shaft seizure. Capable of 24‑hour non‑stop operation with minimal breakdowns, this device cuts manual‑cleaning labour expenses and routine maintenance costs for municipal‑scale and industrial sludge‑handling projects.

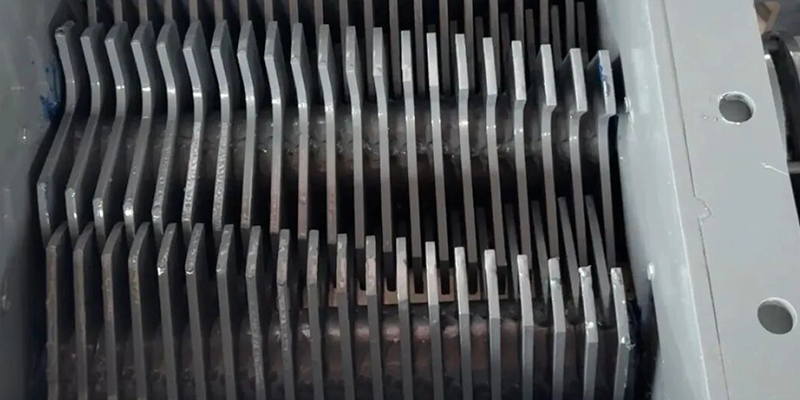

400×400 Electric Lump‑Breaker: Soft‑Action Breaking Equipment for Biomass Raw‑Material Handling
Straw pellets, wood chips and organic biomass pellets readily soak up ambient moisture and get compressed into hard clumps within storage silos. Biomass caking, silo bridging and pipeline blockages often slow down fuel delivery for biomass power stations.
Aggressive heavy‑duty crushers will shred intact fuel particles, damage raw‑material quality and lower overall combustion efficiency.
Our 400×400 model adopts a gentle dispersion‑type breaking mechanism. It splits tangled biomass agglomerates while preserving the original particle shapes. Low‑noise operation, sturdy construction and low failure rates make it well‑suited for biomass‑plant conveyor pipelines, renewable‑energy silo storage and organic‑waste recycling production lines.

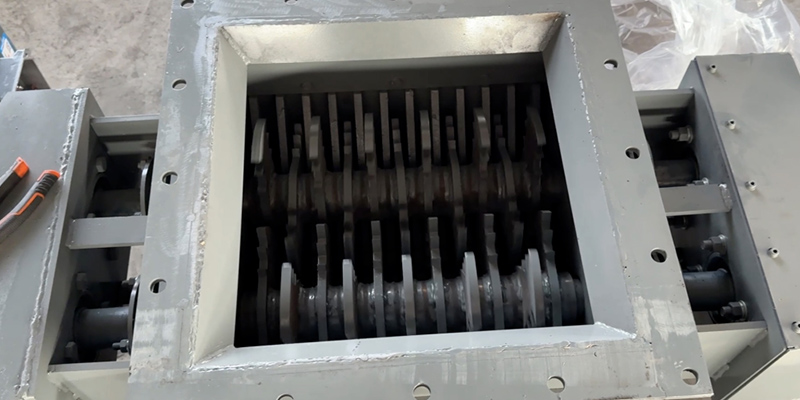

500×500 Electric Lump‑Breaker: Hard‑Lump Remover for Cement and Construction‑Grade Powder
Cement powder, dry‑mixed mortar and fine building‑site powder harden quickly after moisture absorption during long‑term silo storage. Gravity‑pressed material arches and dead‑zone deposits trigger persistent hopper blockage and discontinuous powder discharge at concrete batching plants. Unbroken hard lumps will ruin the uniformity of finished concrete products.
Built for harsh hardened‑powder operating environments, the 500×500 lump‑breaker uses high‑strength impact‑resistant metal cutter teeth. It shatters cement lumps, collapses stable silo material arches and clears stagnant powder trapped inside dead corners. Its streamlined internal passage guarantees smooth, non‑stop powder flow for cement mills, ready‑mix concrete stations and large‑volume powder silo‑transport systems.

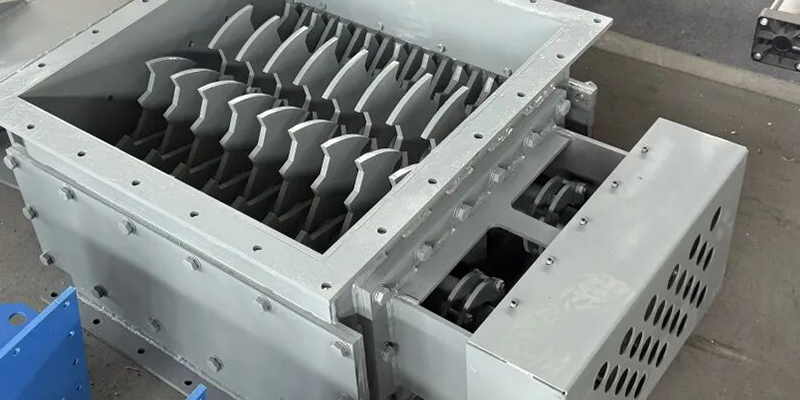

600×600 Electric Lump‑Breaker: High‑Flow Dust‑Sealed Unit for Power‑Plant Fly Ash
Long‑time storage and high‑heat surroundings cause fly‑ash inside thermal‑power‑plant silos to compact and harden. Flue‑gas treatment zones feature harsh working conditions: high‑temperature environments, abrasive ash erosion and round‑the‑clock cyclic operation. Standard‑grade valves wear rapidly, leak dust and fail to meet strict power‑plant environmental‑protection criteria.
The large‑size 600×600 electric lump‑breaker comes with an expanded square‑shaped flow passage for high‑speed ash transportation and efficient lump breakdown. Heat‑proof, corrosion‑resistant hardware withstands long‑term ash scouring. Its fully‑enclosed sealed shell stops fly‑ash leakage and keeps the workshop free from floating dust pollution. This machine serves thermal‑power‑plant fly‑ash silos, flue‑gas desulfurization‑denitrification equipment and large‑scale ash‑storage facilities.
How to Select a Suitable Lump‑Breaker for Your Silo‑Handling System
Frequent hopper block‑outs usually stem from poorly‑matched equipment unsuited to your material traits and site‑specific working conditions. Passive vibrators and air cannons can only relieve temporary‑period material stagnation and are unable to tackle hardened caking and stubborn silo bridging.
Electric lump‑breakers apply active mechanical shearing‑type breaking to eliminate blockages from the root cause and deliver non‑stop, automated bulk‑material discharge.
Our complete‑series products adapt to four major material categories: sticky wet sludge, fragile biomass fuel, hardened construction powder and abrasive high‑temperature fly ash. Every model is engineered for simple maintenance, fewer unexpected shutdowns and higher production‑line productivity. We supply standard‑size and custom‑built anti‑blockage lump‑breaker equipment for global bulk‑material‑handling industries.
We are an experienced professional manufacturer of electric lump‑breakers. With years‑long equipment research‑and‑development and abundant field‑condition practical experience, we provide more than ready‑made standard‑specification units.
We tailor‑make lump‑breaker solutions based on your material characteristics, pipe dimension, available installation room, conveying throughput and system working pressure. Custom‑made upgrades including strengthened wear‑resistant cutter teeth, optimized sealing, high‑temperature‑resistant structures and anti‑sticking special builds are available for hard‑to‑process materials.
Feel free to contact us for free technical consultation, model‑selection guidance and comprehensive after‑sales support. When you are troubled by recurring silo clogging, material bridging, powder caking or incompatible discharge machinery, reach out to our team and obtain a low‑maintenance lump‑breaker solution customized for your industrial plant
