Rotary Airlock Feeder
As a leading process valve manufacturer, Darko specializes in heavy-duty rotary airlock feeders built for the most demanding grinding, separation, and bulk material handling operations. Our rotary airlock valves are precision-engineered to deliver reliable air-mechanical sealing, stable pressure control, and consistent material flow even under high differential pressure conditions.
Whether you need reliable material feeding for V-separators, high-capacity discharge for vertical cement mills, or dust discharge for baghouses and cyclones, Darko rotary feeders provide the durability, tight sealing, and precision your industrial process demands.
- Carbon steel construction for rugged durability
- Round flanged connections in standard working sizes
- Adjustable packing gland shaft seals
- Worm gear reducer
- Compliant with common industry safety and performance standards
What Is a Rotary Airlock Feeder?
Rotary airlock feeder (also known as rotary valve or star feeder) is a core component in bulk material handling systems. Its main function is to transfer granular, powdered or pelletized materials from one chamber to another while maintaining a stable air-pressure seal—which is crucial for systems such as dust collectors, where the rotary airlock valve for dust collector plays a key role in preventing pressure loss.
In cement plants, power stations and dust collection systems, these valves play a key role in the system, allowing materials to enter pressurized or vacuum systems (such as grinding mills and baghouses) while avoiding unnecessary air leakage or pressure fluctuations.
Related Valve Products Recommendation
Cooperates with the two-way diverter valve to control the switching and on-off of material conveying paths, with compact structure, suitable for conveying granular and powdery materials.
Controls the on-off of materials at the inlet and outlet of the two-way diverter valve, wear-resistant and flexible, standardized design, assisting in stable conveying.
Reliable single-blade damper for on/off or modulating control of air, gas, and dust-laden flow in cement, mining, and steel applications.

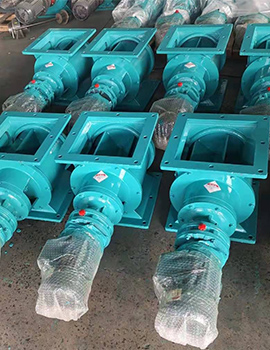

- Main Types of Rotary Airlock Valves
- Key Applications
- Technical Features & Specifications
-
Drop-Through Rotary Airlocks
Standard gravity-fed design for most bulk material applications. -
Blow-Through Rotary Airlocks
Ideal for pneumatic conveying systems, allowing air to pass through rotor pockets. -
Heavy-Duty Abrasion-Resistant Valves
With hardened rotor tips and wear-resistant liners for clinker, coal, cement raw meal, and abrasive materials. - Dust Collector Rotary Airlock Valves
Specially designed for dust discharge from cyclones and baghouses without losing vacuum pressure.
- Fresh material inlets for V-separators
- Vertical cement mills and coal mills
- Cement plant raw material feeding systems
- Dust discharge for baghouses and industrial dust collectors
- Pneumatic conveying and bulk powder processing
| Feature | Specification & Advantage |
|---|---|
| Material | Carbon Steel, Stainless Steel, Wear-Resistant Alloy |
| Rotor Design | Open/Closed End, Beveled Edges, Scraper Blades, Replaceable Tips |
| Pressure Rating | Up to 15 PSI Differential Pressure |
| Temperature | Standard up to 250°C, high-temperature versions available |
| Drive | Direct Drive or Chain Drive with gear reducer |
| Sealing Performance | Low-leakage design for stable pressure control |

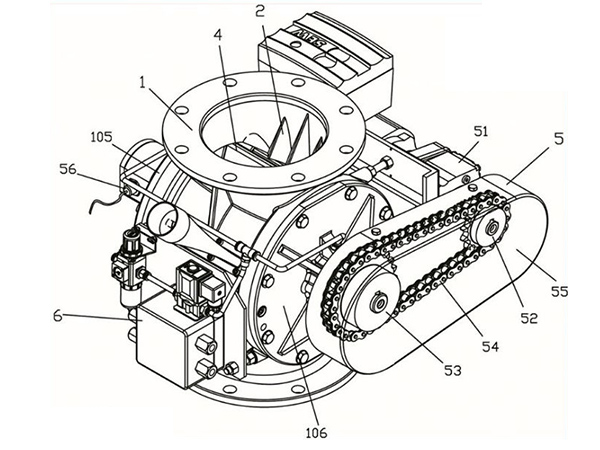

Rotary Airlock Feeder Working Principle

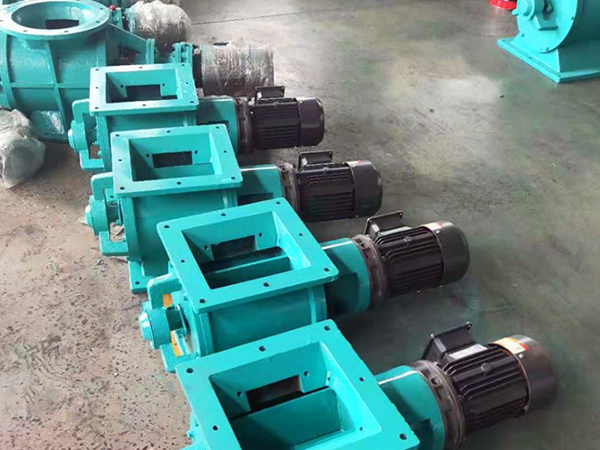

Direct From Manufacturer: Why Choose Darko as Your Rotary Airlock Supplier?
-
Competitive Factory Pricing
Enjoy factory-direct pricing with no distributor markups, while maintaining premium material quality and engineering precision. -
Full Transparency & Direct Support
Get clear pricing, fast technical support, and direct communication with our engineering team throughout your project. -
Fully Customizable Design
We tailor rotor clearances, construction materials (carbon steel, stainless steel, wear-resistant alloys), and drive systems to match your pipeline, pressure, and material requirements. - Strict Quality Control
Every rotary airlock valve is pressure tested, leakage inspected, and performance-verified before shipment to ensure long service life.
Related Products
Get a Custom Quote & Factory Price
It provides reliable air sealing at the material inlet, preventing false air from entering and disrupting the air-to-material ratio, which is critical for separation efficiency.
We use hard-facing technology on rotor tips and offer replaceable wear parts to maintain sealing performance over long operating periods, especially in cement and coal mills.
Without a proper airlock, vacuum pressure would draw air upward through the discharge, preventing dust from falling and causing clogging or system inefficiency.
