Poorly‑specified discharge valves often lead to hopper blockages, excessive component wear, and costly unplanned downtime across bulk solids processing operations. Knowing how to select a clamshell gate correctly ensures you match the right valve to your silo, hopper, and real‑world process conditions.
This practical guide walks you through the core working principle, side‑by‑side valve comparisons, non‑negotiable specification parameters, actuator options, installation best practices, and routine maintenance. Whether you are a process engineer specifying new equipment, a plant manager upgrading existing bulk handling infrastructure, or a procurement specialist evaluating options from a clamshell gate manufacturer, you will gain actionable insights to support your purchasing decision.

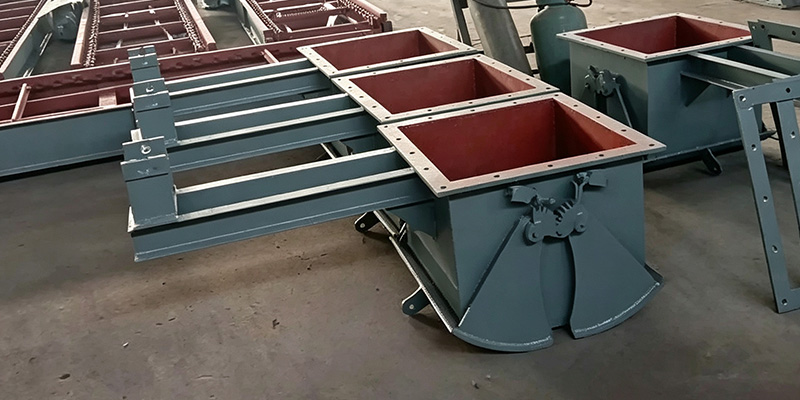

What Is a Clamshell Gate?
A clamshell gate is a heavy‑duty process valve designed for on‑off shut‑off and modulated discharge of dry bulk solids from bins, silos and hoppers. Its name derives from two curved, shell‑shaped leaves that open and close in the same manner as clam shells.
Mounted directly onto the outlet flange of a hopper bottom, this gate regulates material flow without interfering with upstream storage. When fully open, the two curved leaves swing outward to create a large, unobstructed flow passage. When closed, the leaves meet tightly at the centre to cut off material flow completely.
Most industrial clamshell gate units are built with external gear‑linkage assemblies to synchronise leaf movement. Seals fitted along leaf contact edges and housing interfaces minimise fine‑particle leakage. You may encounter alternative names in technical documentation: clamshell gate valve, clamshell discharge gate, or bin clamshell gate — all describing the same bulk‑handling equipment.
How Does a Clamshell Gate Work?
Functionality of a clamshell gate centres on coordinated mechanical movement of its two curved leaves.
- Closed position: Two curved leaves press together at the centre, forming a complete seal against bulk solids and stopping all material flow. Many models include fail‑safe functionality: loss of air or hydraulic pressure automatically returns leaves to the closed position to prevent accidental material spillage.
- Opening stroke: Actuator force transfers to external gear sets and linkages, driving both leaves to swing outward and upward away from the material stream. Leaves retract inside the gate housing and stay clear of the flowing product.
- Partial opening (throttling): Operators can halt leaves at intermediate positions to adjust clearance and control feed rate for continuous dosing. This capability makes the clamshell gate well‑suited for feeding downstream conveyors and weighing equipment.
- Fully open: A maximum cross‑section opens for high‑volume free discharge. Minimal flow restriction lowers risks of bridging and arching for sticky or cohesive bulk solids.
- Closing stroke: The actuator reverses direction. Gears pull both leaves back toward central contact until full sealing is achieved.
A major design advantage: gears and linkages sit outside the material contact zone. Dust, abrasive powders and granules cannot erode drive parts, significantly extending the service life of your clamshell gate.
Clamshell Gate vs Slide Gate vs Sector Gate: Key Comparison
When sourcing discharge valves for bin outlets, engineers frequently compare clamshell gate, slide gate and sector gate performance. The table below outlines critical performance differences to inform your selection.
| Feature | Clamshell Gate | Slide Gate | Sector Gate |
|---|---|---|---|
| Flow passage | Large unobstructed opening | Restricted by sliding blade footprint | Good opening, partial flow shadow |
| Resistance to bridging | Excellent, leaves retract away from material | Poor, blade can compact sticky material | Good, moderate dead zone |
| Space requirement | Low vertical height; moderate side clearance | Long horizontal travel space required | Needs large swing radius on one side |
| Abrasion resistance | Great, drive parts outside material stream | Medium, blade exposed to particle friction | Medium‑high, sector plate contacts material |
| Throttling capability | Good for coarse/granular solids | Poor, prone to particle pinching | Fair for intermittent adjustment |
| Leakage risk | Low with proper seal sets | Moderate, fine powders easily bypass blade | Moderate along pivot shaft points |
| Typical cost | Mid‑range | Low‑mid | Higher premium models |
When to pick clamshell gate: You prioritise anti‑bridging performance, compact vertical installation, and handle abrasive or cohesive bulk solids. When to pick slide gate: Simple on‑off duty, fine powders, limited lateral side space, budget‑focused projects. When to pick sector gate: High‑volume discharge is required and single‑direction swing fits your site layout.
Common Industrial Applications for Clamshell Gate
Clamshell gate valves are widely adopted across process industries requiring controlled bin discharge of dry bulk solids.
- Mining & minerals: Discharge ore fines, crushed stone and mineral aggregates from surge bins. Abrasion‑resistant clamshell gate variants handle sharp, heavy particles.
- Cement & building materials: Silo discharge for cement, lime, gypsum powder and fly ash. Helps prevent arching of compactable cement‑based materials.
- Chemical processing: Process granular chemicals, plastic pellets, resin beads and fertilizer granules. Hygienic surface finishes are available for food‑grade chemical applications.
- Food & agriculture: Discharge grain, feed pellets, sugar granules and cereal from bulk storage. Polished surfaces paired with food‑safe seals avoid product contamination.
- Power industry: Bottom discharge of coal ash and biomass fuel from storage hoppers. Robust construction withstands high‑temperature particulate matter.
- Waste & recycling: Process shredded waste, plastic scraps and compost material from processing bins.
Important note: Clamshell gates are engineered exclusively for dry bulk solids. They are not suitable for liquid service. Choose standard process gate valves for liquid isolation duties.
Core Advantages of a Clamshell Gate
- Superior anti‑bridging performance: Curved leaves swing fully out of the material flow path. Product flows freely without being squeezed between moving components, greatly reducing hopper arching and blockages.
- Compact vertical footprint: Compared with many competing valves, the clamshell gate demands minimal vertical clearance beneath hopper outlets, making it ideal for retrofitting existing bins with limited headroom.
- Well‑protected drive mechanism: Gears, linkages and pivot points are externally mounted. Abrasive material cannot wear mechanical moving parts, lowering overall maintenance frequency.
- Flexible throttling performance: Partial‑opening operation enables adjustable feed rates for downstream conveyors, weighers and dosing systems.
- Configurable fail‑safe closure: Most pneumatic and hydraulic clamshell gate models support spring‑return fail‑close. Upon loss of power or pressure, the gate automatically closes to stop uncontrolled material spillage.
- Broad size and material offering: Sizes range from small laboratory bin units to large‑diameter heavy‑industry silo outlets. Wetted‑part material options include carbon steel, stainless steel, and wear‑resistant alloy.
Known Limitations to Consider During Selection
No single valve works for every working condition. Review these constraints before finalising your clamshell gate specification.
- Lateral space requirement: Though vertical height is small, outward‑swinging leaves require sufficient side clearance. Avoid installing a clamshell gate beside walls, support beams or conveyors that block leaf travel.
- Constraints with ultra‑fine powder sealing: Seals minimise leakage, yet extremely fine dust may still escape through seal gaps. Add auxiliary dust‑tight accessories for high‑containment scenarios.
- Not recommended for throttling ultra‑fine powder: Repeated partial opening with ultra‑fine abrasive powder accelerates erosion on leaf edges. Select alternative feeding equipment if you need frequent throttling for fine dust.
- Seal degradation over operating cycles: Contact seals degrade with repeated open‑close cycles. Periodic inspection and seal replacement are essential to keep your clamshell gate running reliably.
Critical Parameters When You Select a Clamshell Gate
Before reaching out to a clamshell gate manufacturer, define these key parameters to prevent mis‑specified equipment and expensive rework.
- Material properties: Particle size, bulk density, abrasiveness, cohesiveness, moisture content and maximum operating temperature.
- Nominal size: Match gate flange diameter to your hopper outlet dimension. Never downsize the gate below the bin outlet opening.
- Body and leaf material: Carbon steel for general‑purpose minerals; 304 / 316 stainless steel for food, chemical and corrosive dust; wear‑resistant alloy for highly abrasive media.
- Seal material: Nitrile, EPDM, silicone or food‑grade rubber, selected according to process temperature and chemical compatibility.
- Actuator type: Pneumatic, hydraulic or electric. Confirm site utilities: compressed air supply, hydraulic power unit or available electric power.
- Fail‑safe requirement: Confirm whether fail‑close on power loss is mandatory to meet site safety regulations.
- Mounting interface: Flange standard, bolt pattern and gasket dimensions for hopper‑gate connection.
- Operating conditions: Cycle frequency, maximum working pressure, and explosion‑proof requirements for combustible dust environments.
Actuator Options for Industrial Clamshell Gate
Three primary actuation solutions are available from clamshell gate suppliers.
Pneumatic Clamshell Gate
The pneumatic clamshell gate remains the most widely used option across bulk‑handling facilities. It runs on compressed‑air cylinders connected to external linkage assemblies.
Pros: Fast open‑close cycles, competitive cost, simple spring‑return fail‑close implementation, easy PLC integration. Cons: Requires clean, stable dry compressed‑air supply. Not suitable for sites without compressed‑air infrastructure.
Hydraulic Clamshell Gate
A hydraulic clamshell gate uses hydraulic cylinders to drive leaf movement. It is intended for extra‑large gate sizes or applications under heavy material loading.
Pros: High output force, stable performance for large‑scale gates, reliable under heavy material loads. Cons: Needs a dedicated hydraulic power unit, higher capital and maintenance costs, oil leakage risks demand careful installation management.
Electric Motor‑Driven Clamshell Gate
Electric‑actuated clamshell gate utilises a gear motor to drive gate linkages.
Pros: No compressed air or hydraulic oil required. Perfect for remote locations without air supply, delivers position feedback signals for precise throttling. Cons: Slower cycle speed compared to pneumatic units. Additional hardware is needed to realise fail‑safe close functionality.
Installation & Maintenance Best Practices
Proper installation and scheduled maintenance extend clamshell gate service life and reduce unplanned downtime.
Installation tips
- Verify adequate lateral clearance for full swing of clamshell leaves; remove all obstacles within the leaf movement zone.
- Align gate flange precisely with the hopper outlet. Flange misalignment creates mechanical stress on the gate housing.
- Independently support gate weight; do not hang the full gate weight solely from the hopper outlet flange.
- Route actuator hoses and wiring away from falling material flow to avoid abrasion damage.
- Complete full open‑close stroke testing before introducing bulk solids into the system, confirm zero mechanical interference.
Maintenance routine
- Weekly visual inspection: Check seal condition, watch for dust leakage around housing and leaf contact edges, listen for abnormal noise during gate operation.
- Lubrication following manufacturer schedule: Service external gears, pivot shafts and linkage joints. Only lubricate external components; avoid contaminating product‑contact surfaces.
- Seal replacement: Promptly fit new sealing sets when leakage occurs or seals show cracking and abrasion. Worn seals are the top cause of gate leakage.
- Leaf surface inspection: For abrasive working conditions, inspect clamshell leaves for wear. Repair or overlay wear‑resistant material where base metal erodes.
- Actuator inspection: Check cylinders, hoses and fittings for air or hydraulic leaks. Validate limit switches send accurate open‑close feedback signals to your control system.
Frequently Asked Questions About Clamshell Gate
Q1: Can a clamshell gate be used for throttling flow rate?
A: Yes. A clamshell gate supports partial‑position throttling for granular, coarse bulk solids. Frequent partial throttling with ultra‑fine abrasive powder accelerates seal and leaf wear and is not advised.
Q2: What is the difference between clamshell gate and clamshell gate valve?
A: Within bulk‑handling industries, both terms describe identical bin discharge equipment. “Clamshell gate valve” is occasionally used to emphasise its valve‑style shut‑off capability.
Q3: Can clamshell gate handle sticky and cohesive bulk material?
A: Yes. Thanks to retractable leaf design that avoids squeezing material, clamshell gate outperforms slide gates for cohesive material prone to bridging and arching. Correct sizing and proper hopper geometry are still essential.
Q4: Is clamshell gate dust tight?
A: It achieves good dust containment when fitted with high‑quality sealing kits. Add specialised dust‑seal accessories for zero‑leak critical dust‑handling applications.
Q5: Where should I source a reliable clamshell gate?
A: Partner with an experienced clamshell gate manufacturer with deep bulk‑process valve expertise. Submit complete material data and operating conditions to receive custom‑engineered solutions instead of generic off‑the‑shelf products.
