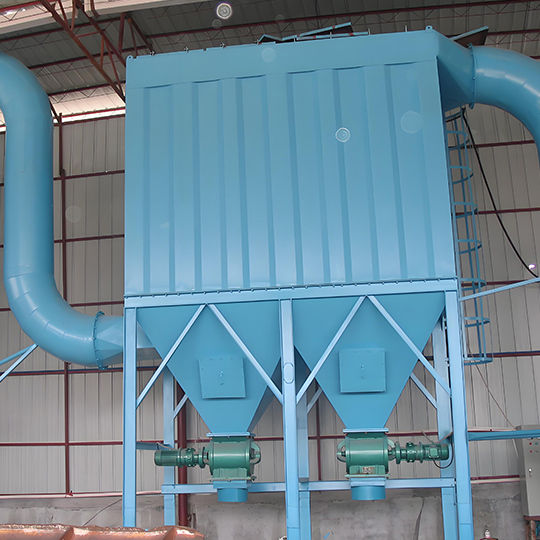

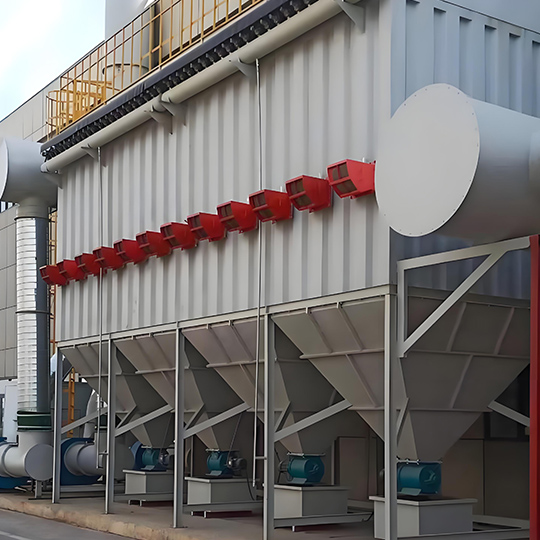

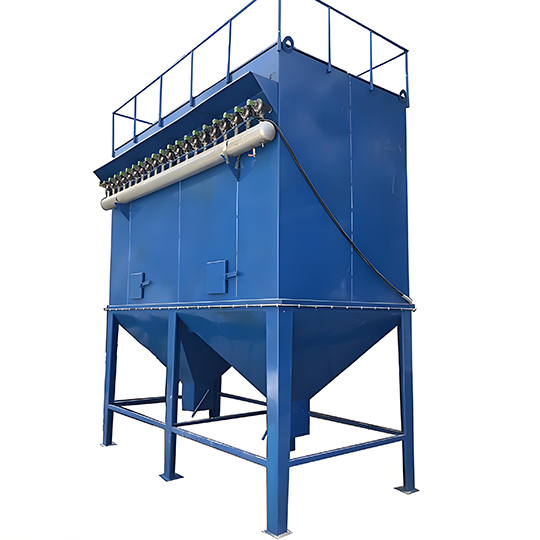

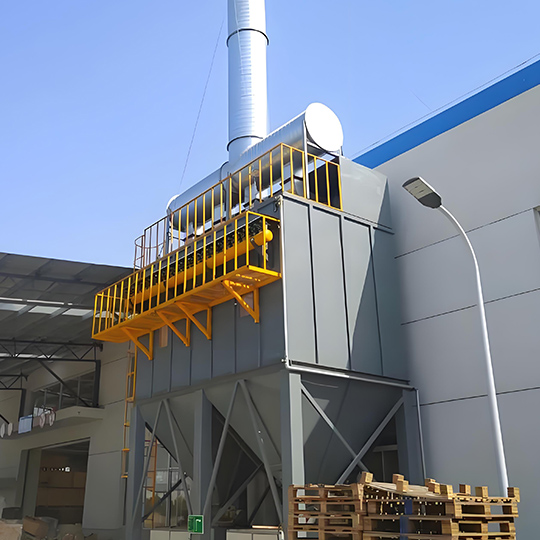

PPCS Series Pulse Jet Dust Collector
The PPCS Series Pulse Jet Dust Collector is a high-efficiency, energy-saving industrial dust removal system that utilizes pulse-jet cleaning technology. It is widely used in industries such as metallurgy, building materials, and chemicals for effective dust control, ensuring clean production and compliance with environmental standards.
- Offline Pulse Jet Cleaning Technology：PPCS Series adopts offline pulse jet cleaning, no shutdown for ash removal, perfect for high concentration dust collection in industrial production.
- 99.9% High Dust Removal Efficiency：Surpass industrial air filtration standards, the pulse jet bag filter core structure ensures thorough dust separation for various industrial dust types.
- Low Maintenance & Long Service Life：Integrated modular design, wear-resistant filter bags and high-quality ASCO pulse valve, reduce daily maintenance cost of your pulse jet dust collector.
- Customizable Air Volume & Filter Area：Large capacity pulse jet dust collector with adjustable specifications, match different production scale demands of factories.
- Stable Operation Under Harsh Conditions：Adapt to high temperature dust working environment, suitable for continuous industrial production with heavy dust emission.

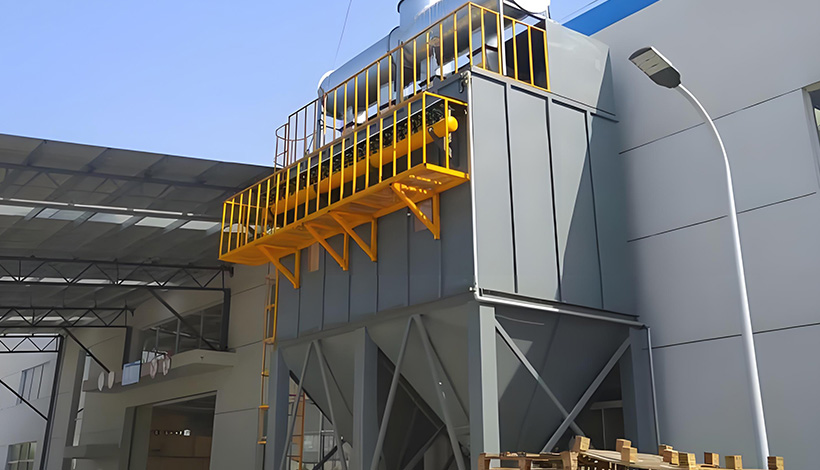

Industry-Leading PPCS Series Pulse Jet Dust Collector Manufacturer
As a professional, industry-leading PPCS Series Pulse Jet Dust Collector manufacturer and pulse jet dust collector supplier with over 10 years of deep expertise in industrial dust control and air filtration system solutions, DARKO is dedicated to providing high-efficiency, stable, and customizable dust removal equipment for global industrial customers. Our ISO-certified PPCS pulse jet dust collectors are produced via mature production lines with reliable quality, exported to more than 30 countries and regions worldwide. Specializing in high-concentration dust treatment, high-temperature dust collection, and low-resistance efficient filtration, our modular dust collector systems are perfectly tailored for cement plants, metallurgy industry, chemical factories, lithium battery production lines, as well as building materials, mining, foundry, and other heavy dust-emission scenarios. Integrating PLC intelligent control, offline sequential pulse cleaning, and energy-saving operation as core advantages, our products realize non-shutdown continuous production, deliver over 99.9% dust removal efficiency, and ensure long-term low maintenance. As your trusted industrial dust collector manufacturer, we provide one-stop industrial dust control solutions that fully comply with international environmental emission standards, empowering your production with green and efficient dust management.
High-Efficiency Dust Collection Solutions
- Technical Specification
- Core Features
- Applications
- Core Components

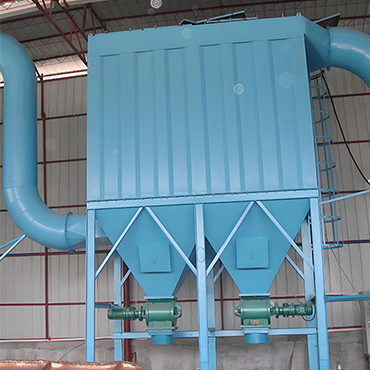

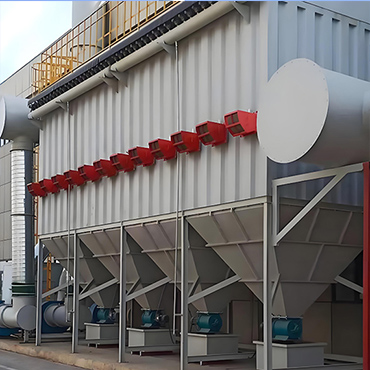

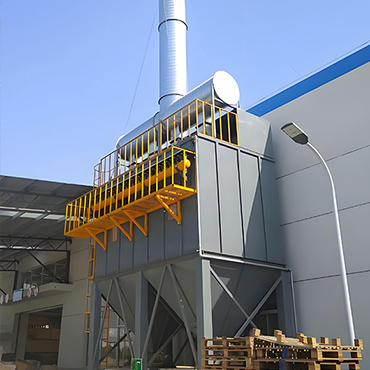

| Parameter | PPCS32 | PPCS64 | PPCS96 | PPCS128 | Notes |
|---|---|---|---|---|---|
| Airflow Capacity (m³/h) | 1,500~3,200 | 3,000~6,400 | 5,000~9,600 | 8,000~12,800 | Customizable for higher airflow |
| Filtration Area (m²) | 32 | 64 | 96 | 128 | Model number = Filtration area |
| Filtration Velocity (m/min) | 0.8~1.2 | 0.8~1.2 | 0.8~1.2 | 0.8~1.2 | ≤1.0 recommended for high dust |
| Filtration Efficiency | ≥99.5% | ≥99.5% | ≥99.5% | ≥99.5% | PTFE membrane reaches 99.9% |
| Operating Temp. (°C) | ≤120 (standard) | ≤120 (standard) | ≤120 (standard) | ≤120 (standard) | High-temp. bags available (≤200°C) |
| Pulse Pressure (MPa) | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | Intelligent pulse-jet control |
| Pressure Drop (Pa) | 800~1,500 | 800~1,500 | 800~1,500 | 800~1,500 | Initial resistance ~800Pa |
| Emission (mg/m³) | <10 | <10 | <10 | <10 | Complies with GB16297/EPA |
| Material | Carbon steel/SS | Carbon steel/SS | Carbon steel/SS | Carbon steel/SS | Optional 304/316L stainless |
| Power Supply | 220V/380V 50Hz | 220V/380V 50Hz | 220V/380V 50Hz | 220V/380V 50Hz | Solenoid voltage: DC24V/AC220V |
-

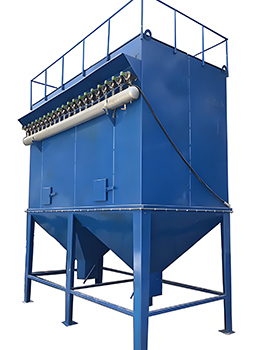

High-Efficiency Pulse Jet Cleaning System
-
Utilizes 0.4-0.6MPa high-pressure pulse jet technology for thorough cleaning and maintaining low filter resistance.
-
-
Modular Flexible Design
-
Available in PPCS32-PPCS128 models with 32-128m² filtration area, supporting custom specifications.
-
-
Ultra-High Filtration Efficiency
-
≥99.5% capture rate for 0.5μm particles (PTFE membrane filters achieve 99.9%).
-
-
Energy-Saving Intelligent Control
-
Automatically adjusts pulse frequency, reducing energy consumption by 30% with differential pressure/timer dual modes.
-
-
Strong Compatibility
-
Housing options: carbon steel (anti-corrosion coating)/stainless steel; filters for normal/high temperature (≤200°C) conditions.
-
-
Ultra-Low Emissions
-
<10mg/m³ emissions, compliant with GB16297, EPA and other strict global standards.
-
- Cement Plant：PPCS Series Pulse Jet Dust Collector for raw material grinding, clinker cooling and cement packaging dust control.
- Metallurgy Industry：High temperature resistant PPCS pulse jet baghouse for smelting, rolling and sintering dust collection.
- Mining Industry：Large capacity PPCS dust collector for ore crushing, screening and transportation high concentration dust treatment.
- Foundry/Chemical/Building Materials：Universal offline pulse jet dust collector for all heavy dust emission industrial production.
- Pulse Jet Valve：High-quality ASCO pulse jet valve, fast response, stable jet, core of PPCS dust collector automatic cleaning system.
- Filter Bags：High temperature/wear-resistant dust collector filter bags, customizable material, long service life, ensure dust removal efficiency.
- Ash Discharge System：Automatic screw conveyor, no dust leakage, matching large capacity PPCS pulse jet dust collector ash discharge demand.

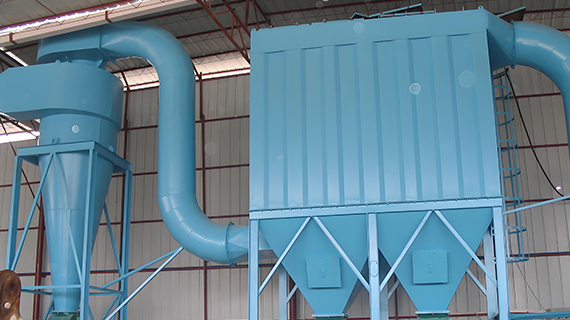

PPCS Series Pulse Jet Dust Collector Working Principle
Related Products
Why Choose PPCS Pulse Jet Dust Collector?
-
Superior Filtration – 99.9% efficiency with PTFE membrane filters
-
Smart Cleaning – Automatic pulse-jet system reduces energy use by 30%
-
Flexible Options – Multiple sizes (32-128m²) & custom designs available
-
Durable Design – 2-4 year filter life with easy maintenance access
-
Reliable Support – Free assessments & 24/7 technical service
Ideal for: Cement, metals, chemicals, food processing & pharmaceuticals
The standard filter bags have a service life of 1-3 years, and the high temperature/wear-resistant filter bags can be used for 3-5 years, depending on the actual industrial dust working conditions.
Yes, it supports temperatures ≤200°C (using high-temperature filter bags), but requires additional cooling equipment.
The selection is mainly based on 3 key factors: your factory’s actual air volume demand, dust concentration, and applicable temperature… We provide free customized selection scheme for industrial dust collector.
The PPCS series is a low maintenance pulse jet dust collector… The filter bags need to be inspected every 6-12 months, and the pulse jet valve is maintenance-free for 2 years under normal use.
