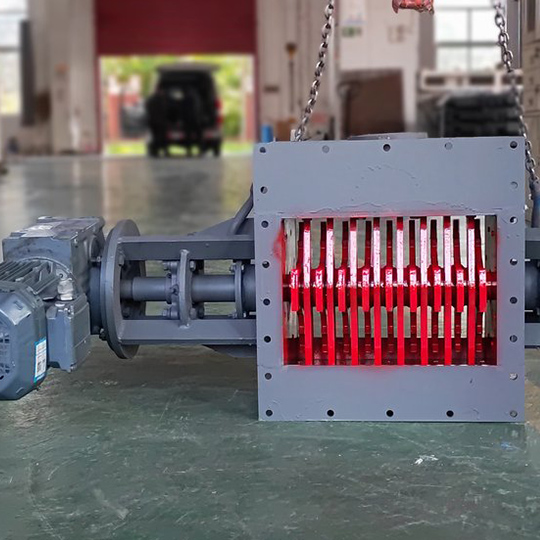

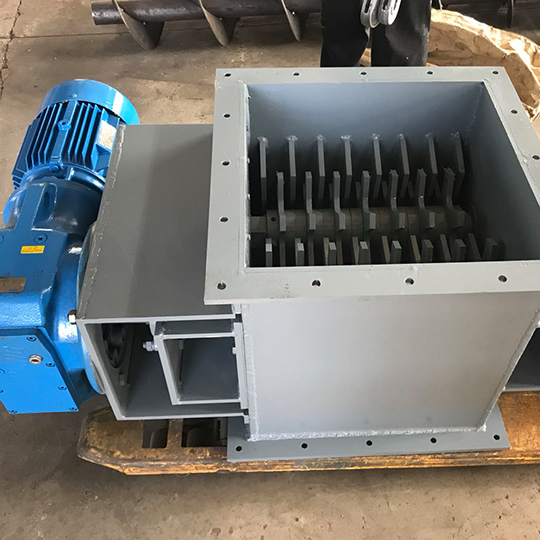

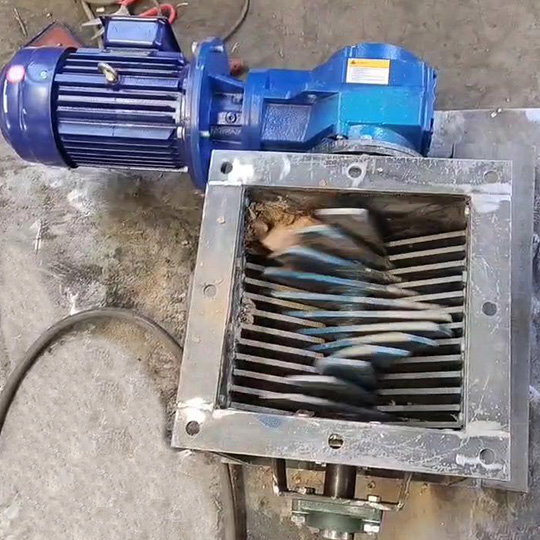

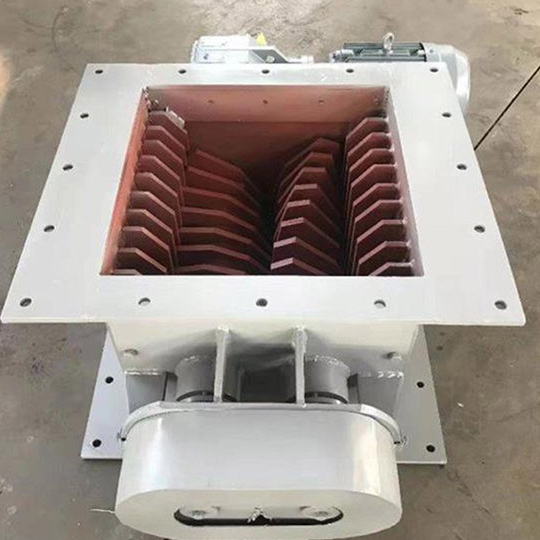

Lump Breaker
- ATEX standards
- 3 standard sizes
- Sturdy and compact
- Designed for continuous duty

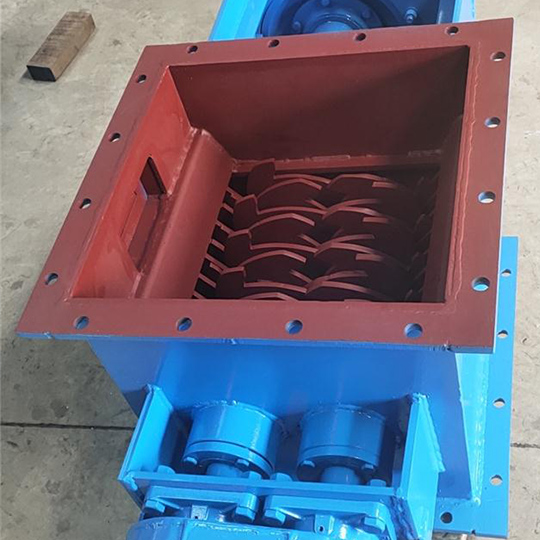

- Heavy-duty dual- or single-shaft models available
- Quick-clean capability for minimizing downtime
- Customizable screen sizes for any sizing application
- Integrated designs with bag-dump workstations or bulk bag unloading systems available
Professional Lump Breaker Manufacturer
Darko has been providing hopper and silo discharging systems including lump breakers for over 15 years for all types of powders and granular materials. With circular and square lump breakers, single shaft or twin shaft in a range of construction materials, A Darko supplied lump breaker will ensure your products have a reliable and consistent texture and feed.
We have over 40,000 square meters of production workshop space, with over 10 research and engineering doctoral staff
In the past 15 years of production, we have accumulated rich experience and earned a good reputation.
Darko has established a system guarantee for continuous innovation.
Our products have been exportedto more than 30 countries andregions, including Europe, NorthAmerica, Asia, and Africa.

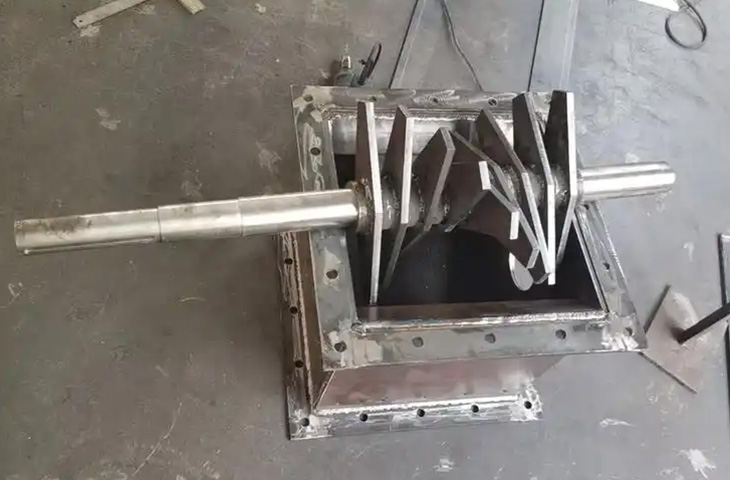

Rotary Crushing
The rotating crushing rotor (rotating speed 15-30 rpm) can quickly crush the lumps at the bottom of the cement storage area, with a processing capacity of up to 1000 m³/h. Compared to manual cleaning, the efficiency is increased by more than 50%. Rotary crushing can adapt to different particle size requirements, and the uniformity of the crushed materials has been significantly improved.

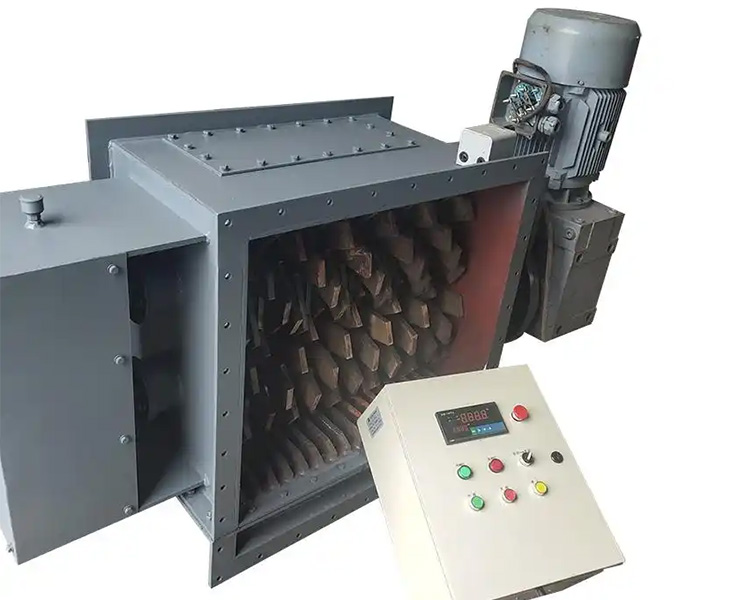

Overload Protection
Upon detecting an overload current, the electronic control system triggers reverse rotation within 0.5 seconds, automatically discharging the jammed material and restoring normal rotation. The entire process requires no manual intervention. Meanwhile, the mechanical overpressure plate and the electronic sensor work together, ensuring safety even if a single system fails.
5-30mm precise control for particle size
The lump breaker has excellent granularity control capabilities, allowing for different particle sizes by adjusting the discharge opening. Precise control of granularity makes subsequent processing more efficient and reduces the production of defective products. At the same time, lump breaker can minimize over-crushing, reduce energy consumption, and improve economic efficiency.

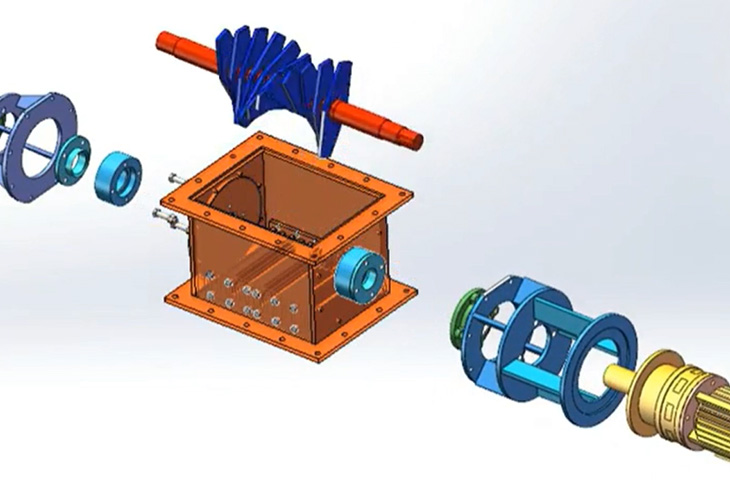

Modular Structure
The lump breaker incorporates multiple functional modules, such as the feeding module, crushing module, discharging module and control module, allowing each module to operate independently. Standardized interfaces are adopted among each module, facilitating quick connection and disassembly, thereby enhancing the efficiency of replacement and maintenance.
Lump Breaker Details Presentation
NM400 steel resists severe wear during crushing, extending equipment lifespan. Its excellent impact resistance ensures stable operation under high loads, reducing failures. NM400’s processing capabilities allow for the manufacturing of complex lumps breaker bodies, meeting various operational needs.
NM500 rotors in lump breaker machine provide high wear resistance and impact toughness. With a hardness of 500 HB, they withstand intense wear, extending lifespan. Compared to other materials, NM500 has superior abrasion resistance, making it ideal for hard materials. Its excellent machinability enables the production of complex rotor shapes for various operational needs.
The lump breaker’s motor has a protection rating of IP65 or higher, preventing sparks and high temperatures from causing explosions, ensuring safety in flammable environments. With ATEX motor, the lump breaker operates efficiently and safely in hazardous conditions, enhancing overall system reliability.
Flanged connections provide good sealing, effectively preventing medium leakage and ensuring lump breaker system safety. At the same time, flanged connections are highly adaptable and can withstand high pressure and temperature. They also make inspection and replacement of the piping system easier, reducing downtime.
Looking for something more?
Our lump breaker Machine can very well be integrated with other system solutions we offer. You can speak with our experts to know more about how we can integrate it with our Pneumatic Conveying Systems, Air Pollution Control Systems or Bulk Solids Handling Systems.
- Data Sheet

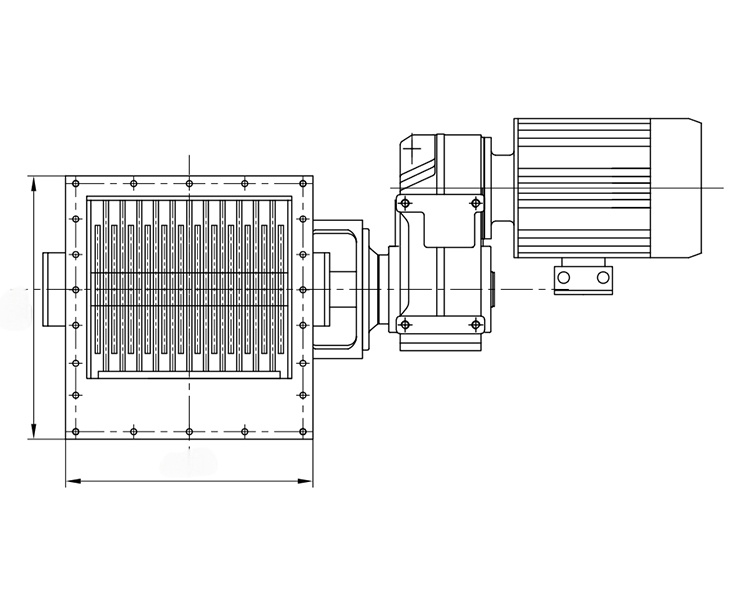

- Our lump breaker structure drawing
- After-Sales Service
- The Real Scene at Darko
| Effective size(mm) | Capacity(m³/h) | Maximum block material （mm) | Fluidization pressure (Kpa) |
| B250 | 200 | <150mm | ≥30 |
| B300 | 300 | <150mm | ≥30 |
| B350 | 375 | <150mm | ≥30 |
| B400 | 400 | <200mm | ≥30 |
| B500 | 600 | <200mm | ≥30 |
| B600 | 800 | <200mm | ≥30 |
| B630 | 900 | <200mm | ≥30 |
| B650 | 900 | <200mm | ≥30 |
We provide comprehensive after-sales support to ensure that your lump breakers operate efficiently in various application scenarios:
✔Product Selection Advice – Recommend the most suitable solution according to your usage scenario and scale.
✔ Remote Installation and Commissioning Guidance – Assist you in completing installation and commissioning quickly through video or online support.
✔ Technical data support – Provide detailed manuals, configuration tutorial videos, and configuration files to make operation easier.
✔On-site Problem Troubleshooting – Remotely diagnose or dispatch engineers to assist in solving system faults and ensure stable operation.Ne cum mollis
Related Product
-
Darko has been a leading provider of custom made dust collectors for the Cement, Food, Wood, Chemical and Mineral Industries.
-
Achieve precise control of powder material flow to ensure the stability and accuracy of material delivery.
-
Modular design supports fast on-site assembly, reducing the construction cycle by more than 50% compared to concrete silos.
-
Reduce packaging bag waste and manual intervention, resulting in low overall operational and maintenance costs.
Find the lump breaker that’s right for you
We build custom lump breaker units, so if there is anything special that you require in sizing equipment of any type, our staff will expedite a solution for you. Similarly, if you already own a Darko Lump Breaker and it needs any specific maintenance, please contact us for quick assistance.
When choosing the appropriate cement lump breaker, consider the characteristics of the working medium, flow and pressure requirements, the temperature and humidity of the working environment, and budget constraints.
Regularly check the lump breake valve’s sealing and moving parts, and clean the internal cement residues to ensure normal operation. Additionally, lubricate the moving parts periodically to reduce wear.
Our lump breaker are suitable for industrial environments, especially in cement plants, concrete production, and construction sites where cement and other bulk materials are handled.
During installation, ensure that the lump breaker’s direction is correct and that the connections are secure. Avoid installing the lump breaker in locations that are prone to damage or hard to maintain, to facilitate future inspections and maintenance.
