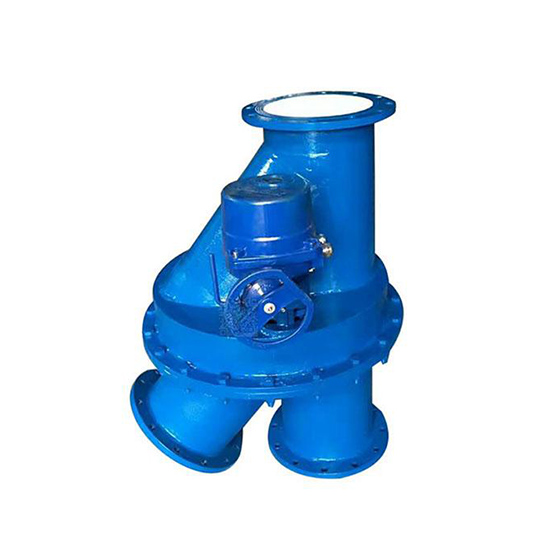

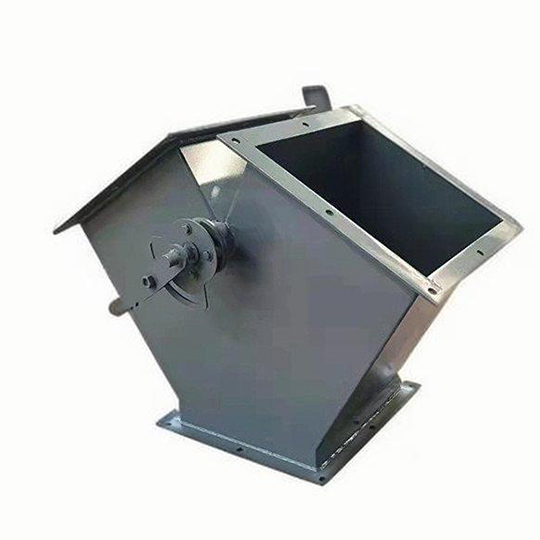

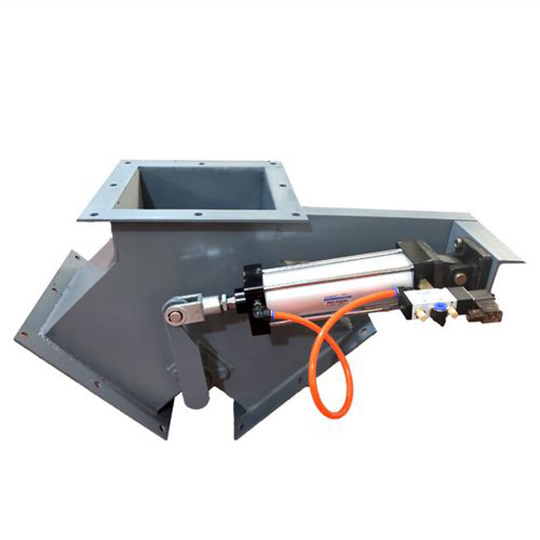

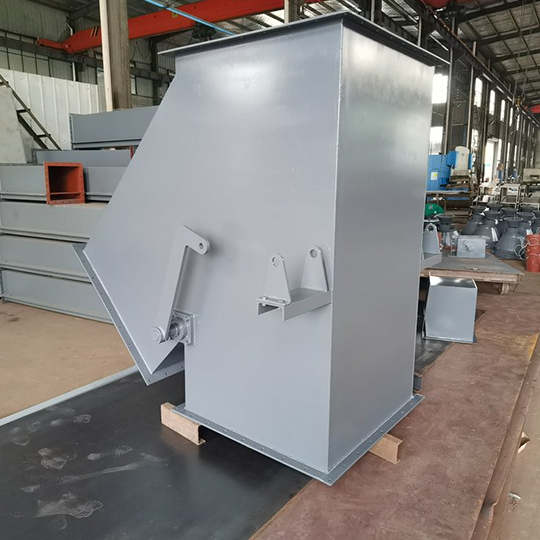

Diverter valve for sale
- Simple construction
- Lightweight and compact overall dimensions
- Minimal pressure loss
- Wear compensating hard polymer seals for abrasive materials
- Food grade options available
- Material construction options available
- Available with flange or pipe fittings
- Multiple flange variations possible – Round / Square inlet & outlet
- Modular design and easy maintenance thanks to limited number of components
What is a Diverter Valve?
A diverter valve is a key piece of equipment specifically designed for bulk material handling systems. Functioning like a “railroad switch for pipelines,” its core purpose is to accurately and reliably switch and divert the flow of bulk materials such as powders and granules from a single pipeline to two or more downstream destinations, like silos, storage bins, or packaging lines. It utilizes unique pants-type flow paths or flap-type mechanisms, often paired with pneumatic or electric actuators.
This specialized design addresses common industry challenges—such as clogging, abrasion, and cross-contamination—during material diverting and switching in applications at cement plants, grain processing facilities, and chemical plants. It is an essential component for ensuring the efficient and flexible operation of pneumatic and gravity conveying systems.
Diverter valve by Construction
We offer a comprehensive range of diverter valves specifically engineered for bulk material handling. Ideal for pneumatic and gravity conveying systems in industries such as cement, grain, and chemicals, our valves guarantee precise, stable, and clog-free material switching.

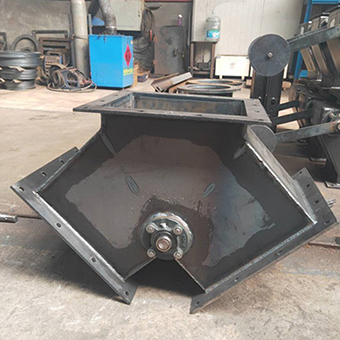

Our two-way diverter valve reliably distributes bulk materials. Its symmetrical flow path balances splitting of powders and granules between two outlets, ideal for packaging line switching or dual silo feeding in pneumatic systems. The smooth interior minimizes buildup, ensuring consistent performance and low maintenance. A cost-effective solution for cement, plastics, and food processing industries.
Designed for space-constrained layouts, our side-entry diverter valve offers an efficient solution without compromising performance. Its compact design allows for easy integration into complex piping systems. This valve ensures reliable flow direction switching for powders and bulk solids in tight spaces, making it perfect for cement plants or chemical facilities.

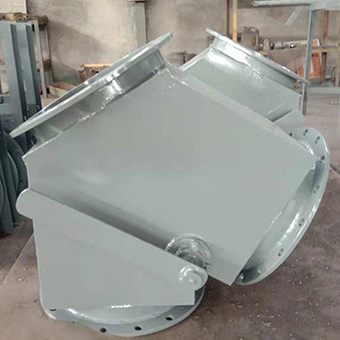

This versatile three-way diverter valve features dual inlets and outlets for maximum flexibility in material handling. It enables control of two different material streams directed to separate destinations, ideal for blending, batching, or flexible routing in industries from mining to grain processing. Its robust construction ensures dependable switching and a long service life.

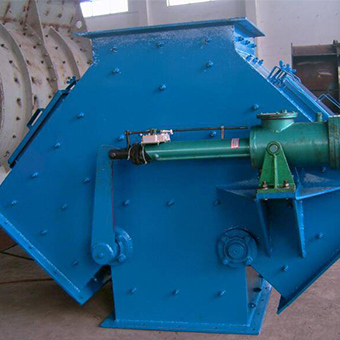

Our Y-type three-way diverter valve efficiently splits a single incoming stream into three outlets. It’s ideal for feeding multiple packaging machines or storage bins in large operations like cement or fertilizer facilities. The optimized flow path ensures uniform splitting with minimal pressure drop, preventing clogging and ensuring smooth operation.

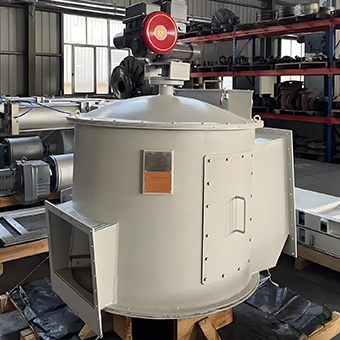

We specialize in custom flap diverter valves tailored to unique applications. Whether handling abrasive materials or extreme conditions, our engineers design valves with wear-resistant liners and specialized seals. Provide your material characteristics and operating conditions, and we will deliver robust solutions for your bulk material diversion challenges.
Diverter valve by Actuation
Choosing the right diverter valve can significantly enhance system efficiency and reliability. Our electric diverter valves offer precise flow control for automated applications, while manual diverter valves are ideal for infrequent flow changes. For harsh conditions, our pneumatic diverter valves excel in high-temperature and corrosive environments. Lastly, hydraulic-electric diverter valves handle high pressures and large flow rates, making them perfect for heavy-duty tasks. Select the appropriate diverter valve to ensure a smooth and efficient production process.

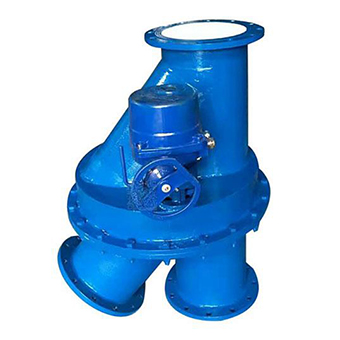

Our electric diverter valves offer high control accuracy and quick response, making them suitable for applications that require precise flow control. With electronic control, users can achieve automation, enhancing production efficiency.

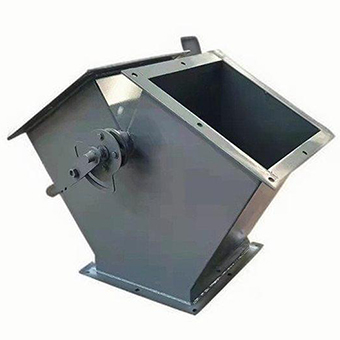

Manual diverter valves are ideal for situations with infrequent changes in flow volume and feature a simple, user-friendly design. They are typically used for temporary flow adjustments, ensuring system flexibility and controllability.
Pneumatic diverter valves excel in high-temperature, high-humidity, and corrosive environments. Designed to withstand harsh conditions, they are ideal for cement plants and other industrial applications.

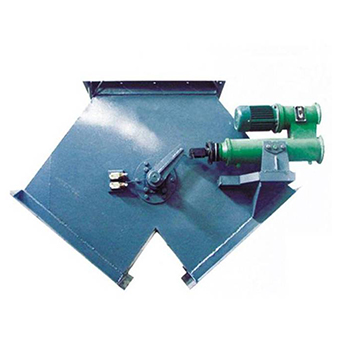

Our hydraulic-electric diverter valves can handle higher pressures and large flow rates, making them suitable for heavy-duty applications. This valve combines hydraulic and electric technologies to provide you with more stable performance.
Diverter Valve by angle
Choosing the right diverter valve based on angle is crucial for maximizing flow efficiency in different applications. Our range includes 45° diverter valves, which ensure a smoother flow transition, making them suitable for various requirements. The 60° diverter valves are designed for scenarios that demand high fluid dynamic performance, while our 90° diverter valves handle large flow rates and high pressures, ideal for industrial settings. Additionally, we offer customized angle diverter valves, allowing for tailored solutions to meet specific on-site conditions. Selecting the appropriate angle for your diverter valve will significantly enhance your system’s operational reliability and effectiveness.

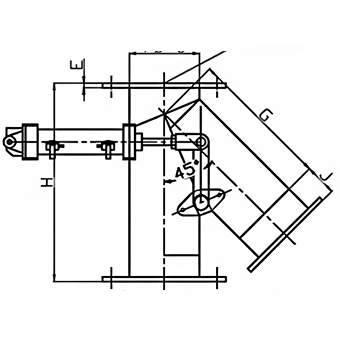

Our 45° diverter valves provide a smoother flow transition, making them ideal for diverting bulk materials in various operational requirements. Their design minimizes turbulence, enhancing overall system efficiency in pneumatic conveying systems.

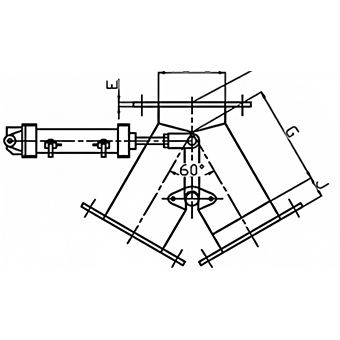

Our 60° diverter valves are perfect for applications with high demands on fluid dynamics. They optimize material flow characteristics, ensuring reliable performance in complex bulk handling systems.
Our 90° diverter valves are specifically designed for applications requiring large flow rates and high pressure, making them suitable for demanding industrial environments, such as cement and material processing. They guarantee efficient flow management under challenging conditions.

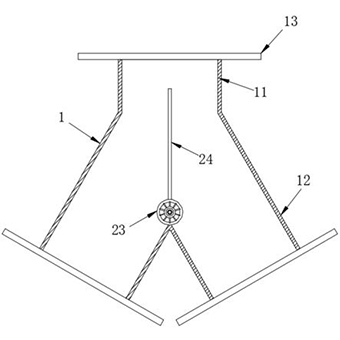

We offer customized angle diverter valves tailored to your specific on-site conditions. Whether you need unique dimensions or configurations, our solutions are designed to meet your exact bulk material handling needs.
Two-position switch type
A two-position switch is an electrical switch that has two states: ON and OFF. It is widely used in industrial equipment. Essentially, the two-position switch functions as a directional control valve, enabling the switching of fluid pathways in a diverter valve through two fixed positions (open/closed).
Integrated weldin
Integrated welding reduces seams and connection points, thereby lowering the risk of leaks and enhancing sealing performance. By using integrated steel plate welding or casting for valve bodies, internal flow paths transition smoothly without dead corners, minimizing material residue.

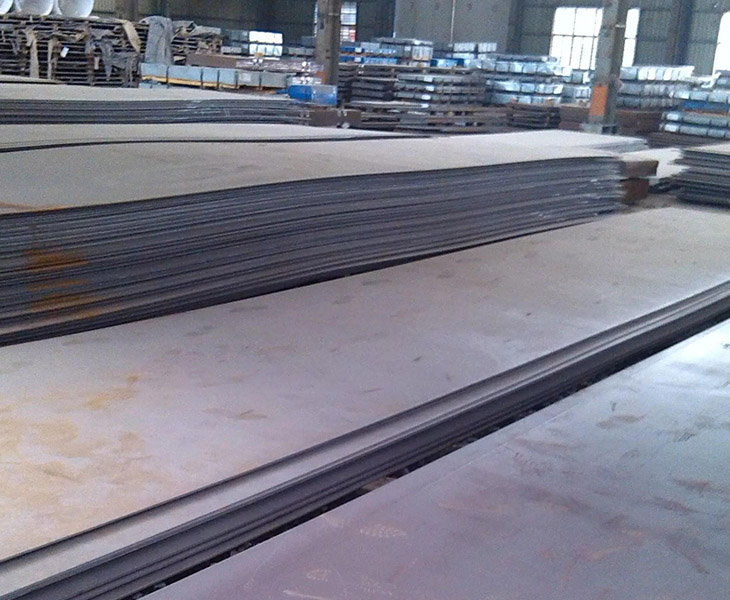

Wear Plates
The wear plate of the diverter valve utilizes high-chromium alloy/ceramic composite technology. This enhances wear resistance by five times. It also extends service life by 300%. As a result, your production line can say goodbye to frequent repairs!
We match the optimal lining material based on the characteristics of the material. This includes particle size, moisture content, acidity, and alkalinity. Our goal is to ensure precise protection for your discharge system!

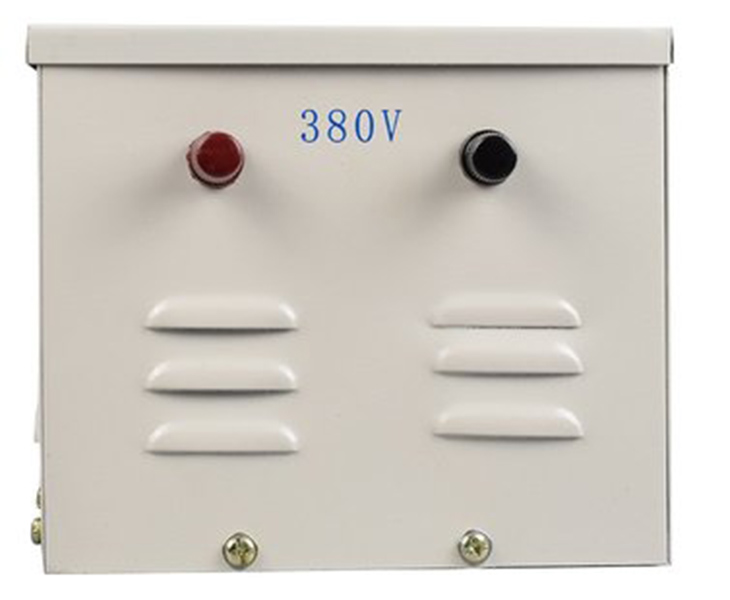

Support 380V power
380V is the mainstream voltage for industrial equipment, perfectly matching the commonly used electric/hydraulic actuators for diverter valves. This eliminates the need for additional voltage conversion devices.

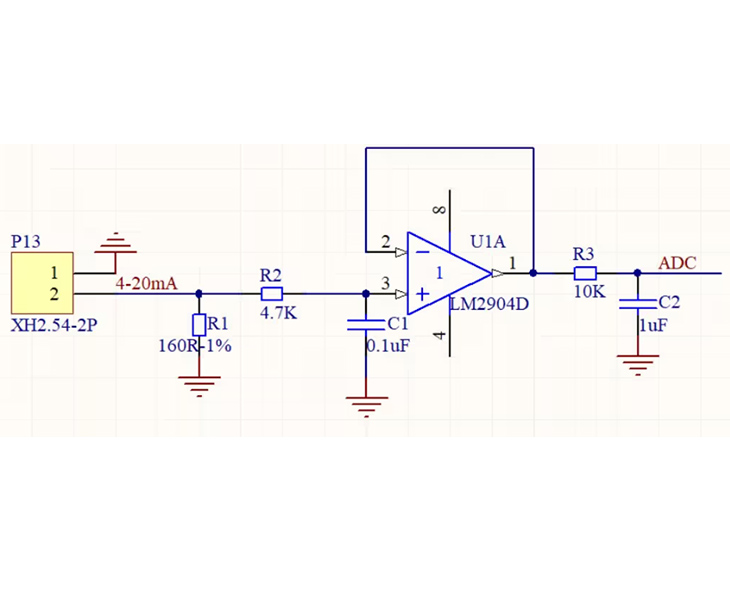

Support 4-20mA signal reception
The 4-20mA signal diverter valve is the “nerve ending” of industrial automation control! It seamlessly interfaces with PLC/DCS systems and offers 0.1% high-precision adjustment. This allows for precise control of powder and liquid flow, making it as effortless as extending a finger.

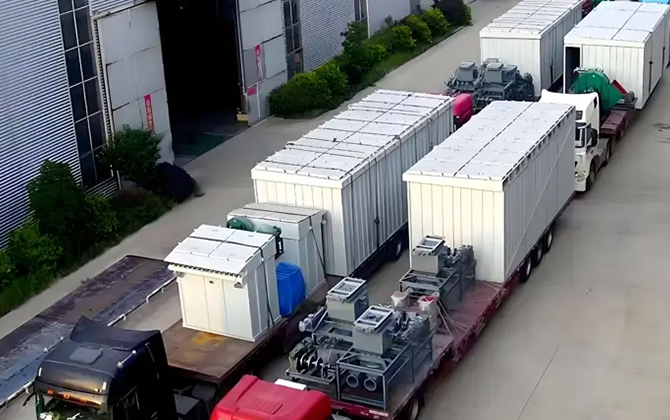

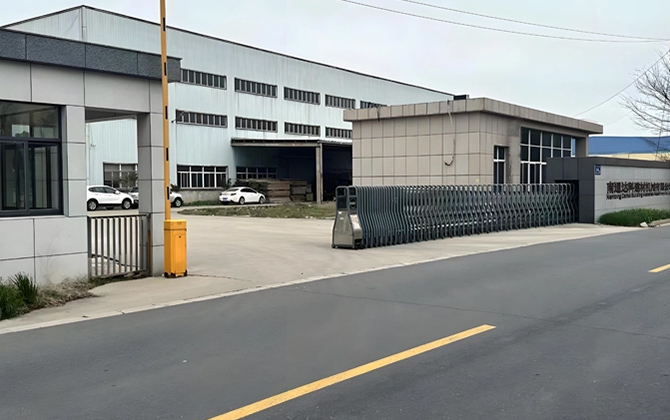

Why Our Customers Choose to Trust Us
- Factory Direct Sale: To get high quality and reasonably diverter valve priced , you can come directly to our own factory without middlemen, which means you purchase products directly from the production source. Our factory is equipped with advanced production equipment and strict quality control, we pay attention to details to ensure that each diverter valve has a finished product inspection, with us you can not only enjoy personalized customization, but also get a more competitive price!
Core Solutions for Cement and Mining Industry Clients
We specialize in providing high-performance bulk material handling valves for the cement plant and mineral processing industries. Our valves are core components of pneumatic conveying systems and powder conveying pipelines, specifically engineered to handle abrasive materials, ensuring smooth, uninterrupted flow at every stage from mill discharge to finished product packaging.
Core Application Scenarios
1. Complete-Process Diverter Solutions for Cement Plants
From raw meal grinding and calcination to finished cement conveying, our diverter valves for cement plants are critical for ensuring continuous production. With exceptional wear resistance and sealing performance, our valves precisely direct materials to different homogenizing silos, storage bins, or packaging systems, meeting your complex production scheduling needs.
2. Demanding Mineral Processing Applications
In processes like ore dressing and concentrate conveying, equipment faces extreme wear. Our mineral processing diverter valves, built with heavy-duty construction and specialty liners, can withstand the impact of highly abrasive ore particles for extended periods, providing durable and reliable switching service for your bulk material handling system.
3. Efficient Diversion at the Mill Outlet
The mill discharge valve operates in an exceptionally harsh environment. Our specially designed valves for this duty offer superior impact resistance and clog prevention, ensuring that ground materials are conveyed quickly and stably to the next process stage, directly improving the mill’s overall operational efficiency.
4. Efficient Pn1eumatic Conveying and Distribution
As experts in pneumatic conveying diverter valves, we deeply understand the interplay of aerodynamics and material characteristics. Our valves feature optimized flow paths with low pressure drop and fast switching, enabling precise material distribution in long-distance pipeline conveying, making them the ideal choice for powder conveying valve systems.
FAQs
If you have any other question not listed in FAQs, please don’t hesitate to contact us; our team will reach out to you very soon and give you personal help to answer your inquiry.
Consider factors such as material particle size, density, and abrasiveness. For highly abrasive powders, it is recommended to use ceramic coatings or hard alloy valve cores. For viscous materials, choose structures with self-cleaning functions.
Manual types are suitable for low-frequency operation scenarios, while electric/pneumatic types are better for automated control. In explosive environments, pneumatic or explosion-proof electric actuators should be selected.
A 2 way valve (standard 2 way and side 2 way) is used for single inlet and double outlet distribution, while a 3 way valve supports multi-directional distribution (e.g., two inlets and two outlets). Selection should be based on the requirements of the process flow.
A diverter valve is a mechanical device designed to change the flow direction of materials in a process system. It is commonly used in pneumatic conveying and gravity flow applications to transport bulk materials to silos, bins, hoppers, or packaging stations, ensuring efficient logistics management.Learn more about diverter valve types and selection in our guide: What is a Diverter Valve?
The appropriate angle for a diverter valve (such as 45°, 60°, or 90°) depends on your specific application needs. For instance, a 45° diverter valve provides a smoother flow transition, suitable for various operational requirements; while a 90° diverter valve is better for high flow and pressure applications.
Yes, we offer diverter valves with customized angles that can be designed according to your specific on-site conditions. Whether you need particular configurations or unique features, our solutions are tailored to meet your precise requirements.
When selecting a three-way valve for a large bulk material pneumatic conveying system, factors such as flow rate, pressure, and material characteristics must be considered. Ensure that the chosen valve can effectively manage the flow direction and reduce energy consumption to improve system efficiency.
