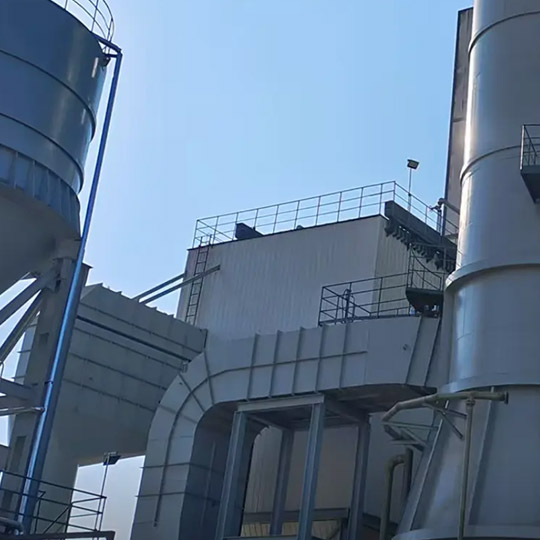

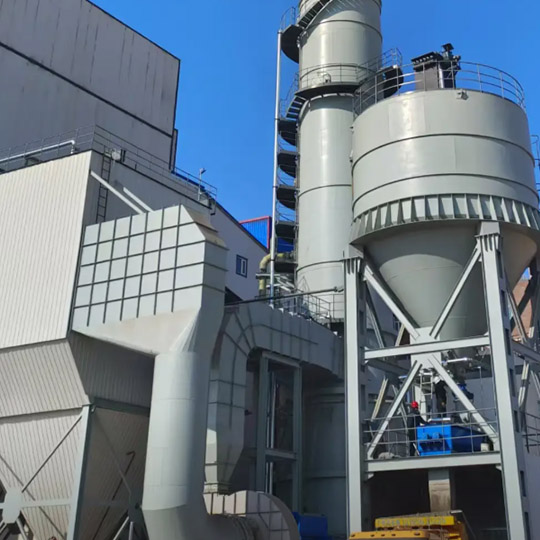

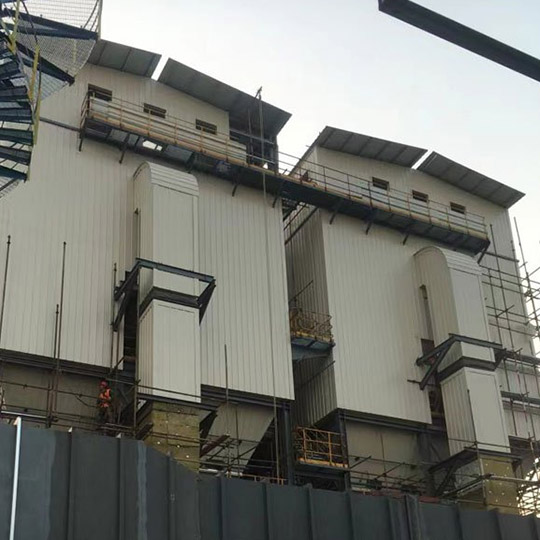

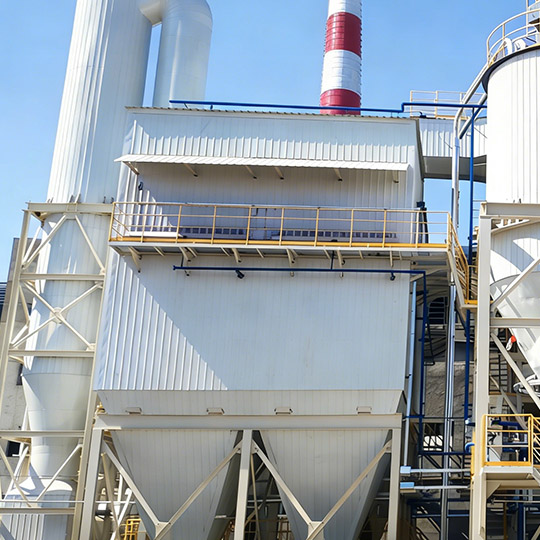

Desulfurization Dust Collector
What is Flue Gas Desulfuration?
How Does a Desulfurization Dust Collector Work?
Working Principle of Wet Desulfurization Dust Collector
Flue gas containing SO₂ and dust enters the spray tower via the air inlet. A high-pressure spray system releases alkaline absorbents (e.g., limestone slurry) to form a dense liquid film. When flue gas passes through the film, SO₂ reacts with the absorbent to form soluble sulfates, which are discharged with the slurry. Dust particles are captured by liquid droplets and separated by a demister, producing clean, compliant flue gas. This model delivers ultra-high SO₂ and dust removal efficiency for high-concentration flue gas treatment.
Working Principle of Dry Desulfurization Dust Collector
Key Features of Our Desulfurization Dust Collector
Our desulfurization dust collector achieves ultra-high treatment efficiency, with desulfurization rate up to ≥99% and dust removal rate up to ≥99.9%, thoroughly eliminating sulfur dioxide and particulate matter in flue gas to fully meet strict global environmental emission standards.
We customize air volume, material and installation type to fit boilers, power plants, cement plants and other diverse application scenarios.
Built with automatic ash cleaning system and standard wearing parts, it needs less manual work and only routine maintenance every 6-12 months.
No secondary pollution during operation; desulfurization by-products and dust are recyclable as building materials for green production.
Our Service Process
Our end-to-end service ensures high-efficiency dust collection systems with reliable performance and fast technical support.
We analyze your production requirements to provide customized equipment selection ensuring perfect system compatibility.
Our senior engineers create personalized solutions with optimized system configuration based on your specifications.
Detailed pricing covering equipment, installation, shipping and after-sales service with no hidden costs.
Strict quality control at our ISO-certified factory guarantees reliable equipment performance.
Dedicated logistics team ensures on-time delivery with complete installation guidance and training.
24/7 technical support with scheduled maintenance alerts and fast spare parts delivery.

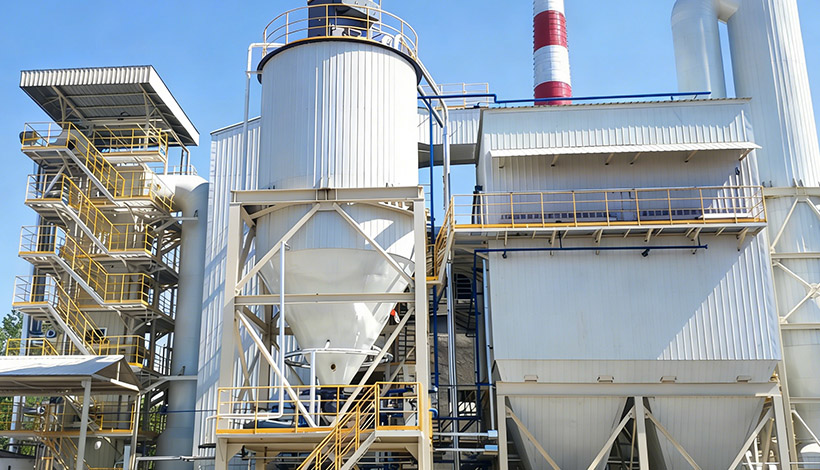

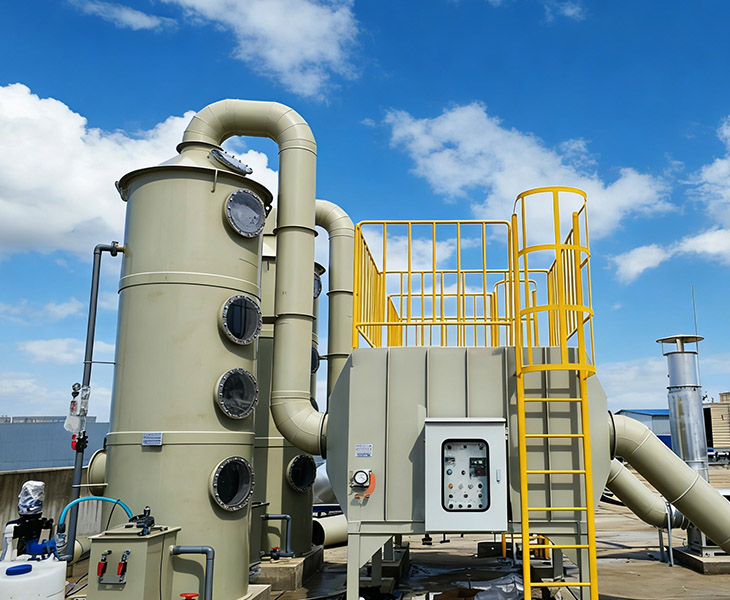

Flue Gas Desulfuration Systems
Flue gas desulfuration systems are advanced environmental protection equipment specially designed to remove sulfur dioxide (SO₂) from flue gas emitted by industrial boilers, kilns, waste incineration plants and other facilities. These systems effectively reduce acidic gas pollutants, meet strict national and international emission standards, and play a key role in air pollution control. With stable performance, high desulfurization efficiency and low operating costs, they are widely applied in power generation, metallurgy, cement, chemical and other industries to achieve clean and eco-friendly exhaust discharge.

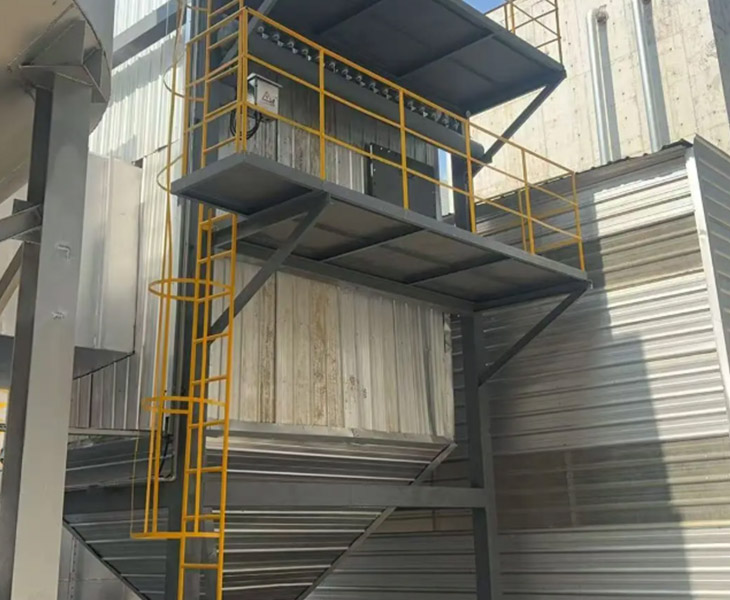

How to Select the Right Desulfurization Dust Collector?
The selection of a suitable desulfurization dust collector mainly depends on flue gas volume, SO₂/dust concentration, working temperature, installation space and budget. Different working conditions and emission standards require different equipment types, such as wet desulfurization dust collector and dry desulfurization dust collector. Our professional engineers provide free professional selection and customized design services to ensure the equipment fully matches your actual working conditions. We will help you choose the most cost-effective industrial desulfurization dust collector to achieve high purification efficiency, stable operation and long service life.

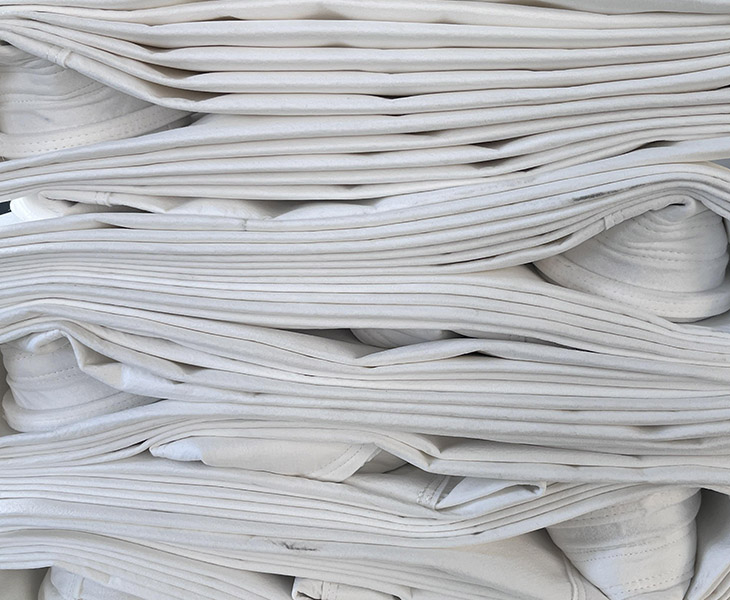

Special Filter Bag & Filter Material Selection for Denitrification Dust Collector
Own Factory, High Quality Manufacturing Power
Darko Desulfurization Dust Collector - Professional Industrial Flue Gas Treatment Manufacturer
Darko Industrial Desulfurization Dust Collector: Ultra-High Efficiency, Energy-Saving, Corrosion-Resistant | Tailored Solutions for Severe Working Conditions | Nationwide & Overseas Project Experience
-

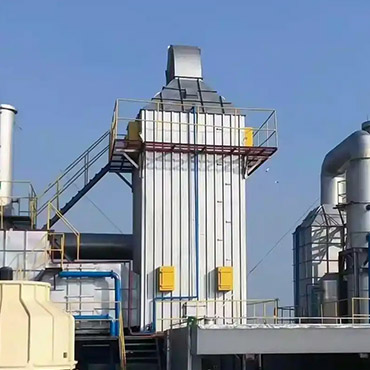

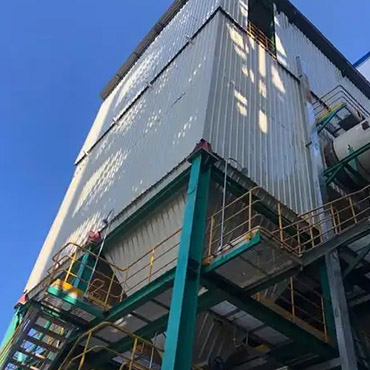

Client Demand: Treat flue gas volume of 120,000 m³/h, inlet SO₂ concentration of 3,500 mg/m³, required desulfurization efficiency ≥99%
-
Solution: Customized wet desulfurization dust collector (316L stainless steel, high-pressure spray system)
-
Project Effect: Outlet SO₂ concentration ≤35 mg/m³, dust concentration ≤20 mg/m³, stable operation for 2 years, fully compliant with local environmental emission standards
-

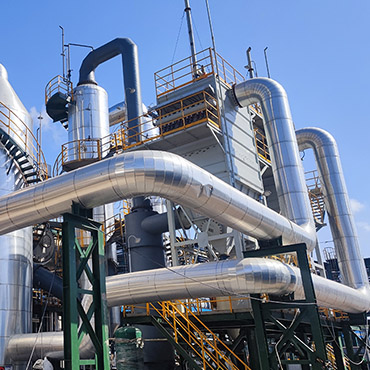

Client Demand: Flue gas volume of 300,000 m³/h, zero wastewater discharge, energy-saving design
-
Solution: Integrated dry desulfurization dust collector with bag filter
-
Project Effect: Desulfurization efficiency of 96%, energy consumption reduced by 18%, collected dust recyclable as building materials
Client Demand: Treat flue gas volume of 250,000 m³/h, meet domestic ultra-low emission requirements, adapt to stable operation in severe cold northern regions
- Solution: Customized wet desulfurization dust collector (double-tower spray design, low-temperature resistant anti-corrosion material)
- Project Effect: Stable desulfurization efficiency ≥99%, outlet SO₂ concentration ≤30mg/m³, trouble-free continuous operation for 3 years, compliant with Xi’an and national environmental standards
-

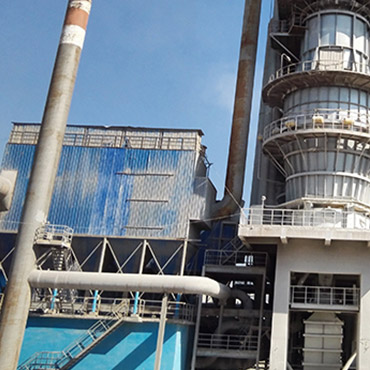

Client Demand: Low efficiency of original equipment, need upgrading and renovation, adapt to working conditions with high dust and high sulfur flue gas
-
Solution: Integrated dry desulfurization dust collector with bag dust removal, anti-blocking and easy maintenance
-
Project Effect: Comprehensive dust removal efficiency ≥99.8%, desulfurization efficiency ≥96%, operation and maintenance cost reduced by 15%, successfully passed local environmental acceptance
Custom-Built & Reliably Supported
We provide a complete range of standard and customized dust collection systems, supported by our global service network to deliver end-to-end solutions – from equipment selection to long-term maintenance – for industrial clients worldwide.
More about Desulfurization Dust Collector
- Technical Parameters
- Application Scenarios of Desulfurization Dust Collector
|
Parameter Item
|
Wet Desulfurization Dust Collector
|
Dry Desulfurization Dust Collector
|
|
Treatment Air Volume
|
10,000-500,000 m³/h (Customizable)
|
5,000-300,000 m³/h (Customizable)
|
|
Desulfurization Efficiency
|
≥99%
|
≥95%
|
|
Dust Removal Efficiency
|
≥99.9%
|
≥99.8%
|
|
Inlet SO₂ Concentration
|
≤5,000 mg/m³
|
≤2,000 mg/m³
|
|
Inlet Dust Concentration
|
≤30,000 mg/m³
|
≤20,000 mg/m³
|
|
Working Temperature
|
≤180℃ (High-Temp Type Optional)
|
≤220℃ (High-Temp Type Optional)
|
|
Material
|
304/316L Stainless Steel, PP, FRP (Anti-Corrosion)
|
Carbon Steel, 304/316L Stainless Steel
|
|
Pressure Loss
|
800-1,200 Pa
|
1,000-1,500 Pa
|
|
Energy Consumption
|
0.8-1.2 kWh/1,000 m³
|
0.5-0.9 kWh/1,000 m³
|
|
Installation Type
|
Indoor/Outdoor, Vertical/Horizontal (Customizable)
|
Indoor/Outdoor, Vertical/Horizontal (Customizable)
|
-
Power Plants: Coal-fired power plants, thermal power plants, biomass power plants (large air volume flue gas treatment for boilers)
-
Cement Plants: Cement kilns, clinker production lines, grinding workshops (high dust concentration working conditions)
-
Boiler Industry: Coal-fired, oil-fired, gas-fired and biomass boilers for factories, hotels and hospitals
-
Chemical & Metallurgical Plants: Chemical reactors, smelting furnaces, waste incinerators (corrosive flue gas treatment)
-
Other Industries: Waste incineration plants, mining facilities, food processing plants and more
Wet type features higher desulfurization efficiency (≥99%), suitable for flue gas with high SO₂ concentration, but requires supporting wastewater treatment; dry type realizes zero wastewater discharge with lower operation cost, ideal for flue gas with low SO₂ concentration.
The selection depends on flue gas volume, SO₂/dust concentration, working temperature, installation space and budget. Our engineers provide free professional selection and customized design services.
Desulfurization (FGD) works by introducing a chemical absorbent to react with sulfur dioxide (SO₂) in flue gas. At Darko, our desulfurization dust collector uses either a wet scrubbing system (limestone slurry) or a dry injection process (powdered absorbent) to capture and neutralize SO₂, converting it into stable, non-hazardous by-products for safe disposal or recycling.
Core Dust Collection Equipment
-
Designed with multi-layered pleated filter cartridges for 99.97% filtration efficiency, optimized for fine particulate control in industries like cement, metalworking, and pharmaceuticals. Compact structure with easy maintenance ensures long-term stable operation.
-
Specifically designed for combustible dust environments with integrated explosion-proof devices and pressure relief systems, compliant with ATEX standards. Perfect for chemical, pharmaceutical, and metalworking industries.
-
Incorporating advanced pulse-jet cleaning technology for automatic filter maintenance and continuous high-efficiency operation. Offers large air volume capacity with low energy consumption, making it ideal for woodworking and food processing applications.
-
Utilizing centrifugal separation principle to effectively remove large particulate matter. Can serve as pre-filters or standalone units with simple structure, no consumables, and low operating costs – excellent for primary dust collection needs.
-
Equipped with high-performance filter bags for 99.9%+ stable filtration efficiency against coarse and fine dust. Robust structure with large filtering area, ideal for mining, metallurgy, building materials and power generation industries.
Industrial Desulfurization Dust Collector Manufacturer & Supplier
Our desulfurization dust collector uses absorbent to react with SO₂ and convert it into harmless compounds, achieving high SO₂ removal efficiency.
Wet type has higher efficiency; dry type has no wastewater and lower operation cost.
Selection depends on flue gas volume, SO₂ concentration, temperature, space and budget. We provide free professional selection service.
