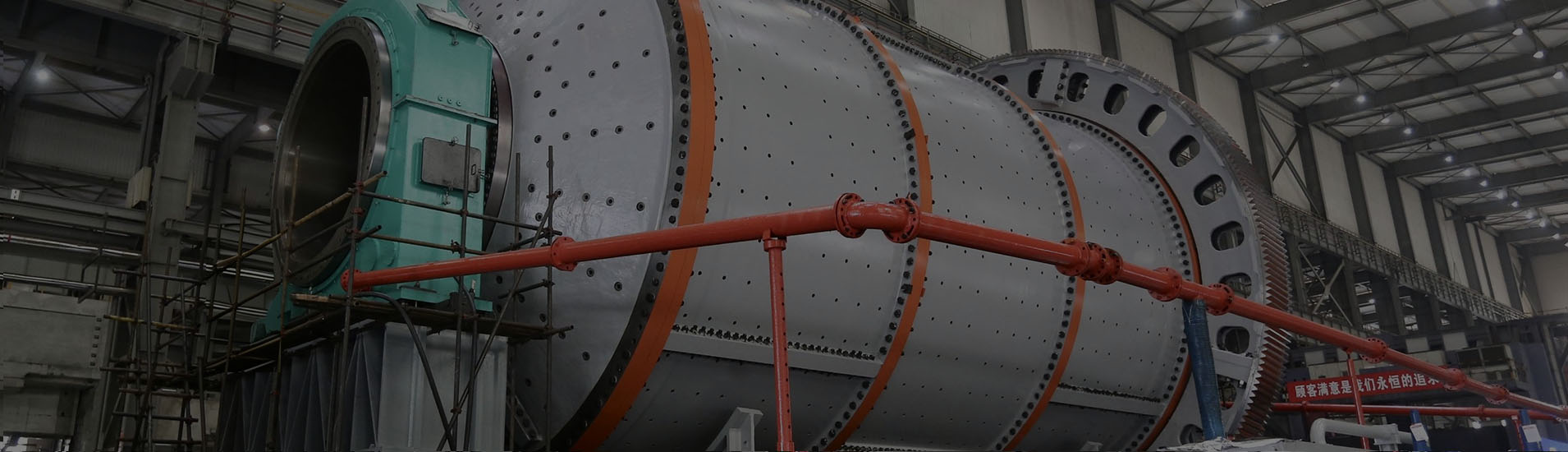

Cement Ball Mill for Sale

Cement ball mill is a key equipment for material grinding in the industrial field. It belongs to mining machinery products and is mainly used for raw material and finished product processing in cement production. It is also applicable for processing ores and other grindable materials in metallurgy, chemical industry, electric power and other industries.

Mill Type: Dry / Wet
Capacity: 1-200 TPH (Customizable)
Feeding Size: ≤25 mm
Motor Power: 75-5000 kW
Product Fineness: 80-325 Mesh
Certification: ISO9001
Applicable Materials: Limestone, cement clinker, gypsum, slag, ore, etc.
Body Material: Main cylinder is made of high-quality steel plate, core wearing parts (lining plate, grinding media) are high manganese steel / high chromium cast iron / high chromium alloy steel (optional)

Get Latest Price Now

What is a Cement Ball Mill?

Our cement ball mill is a professional cement grinding mill designed for cement production lines, cement grinding stations and various industrial grinding applications. As a core cement grinding equipment, the cement ball mill is widely used for grinding cement clinker, raw meal, slag, fly ash and other materials, which plays a key role in improving cement quality and production efficiency of the cement ball mill.

This cement ball mill (also called cement tube mill) adopts advanced structural design, combining high efficiency and energy saving, which can meet the grinding needs of different scales of cement plants. From small cement ball mill to large capacity cement ball mill, all cement ball mill models can be customized according to your actual requirements.

Send Inquiry Now

Cement Ball Mill Specifications
Cement Ball Mill Buying Guide
Advantages of Cement Ball Mills
Project Cases

Model	Diameter × Length (m)	Capacity (t/h)	Motor Power (kW)	Speed (r/min)
Φ2.2×7m	2.2×7	10-15	245	24.5
Φ2.4×13m	2.4×13	25-35	630	22.4
Φ3.2×13m	3.2×13	60-80	1250	18.7
Φ3.5×13m	3.5×13	80-100	1600	17.5
Φ4.2×13m	4.2×13	120-150	2500	15.6
Customized	Custom	10-200	Custom	Custom

The Cement Ball Mill Buying Guide helps you choose the most suitable cement ball mill according to your actual needs. Here are the key points to consider when buying a cement ball mill:

Production Capacity: Determine the required capacity (t/h) according to your daily production demand. We provide cement ball mill with capacity from 10 tph to 200 tph, and customized capacity is also available.
Material Type: Choose the appropriate cement ball mill according to the material to be ground (cement clinker, slag, fly ash, etc.). For different materials, we will match the appropriate grinding media and liner plate.
Installation Site: Consider the size of the installation site and choose the appropriate model of cement ball mill. We can also provide customized design according to the site size.
Quality & Certification: Choose cement ball mill with ISO, CE and other certifications to ensure product quality and safety. Our cement ball mill has passed strict quality inspection and certification.
After-sales Service: Choose suppliers with perfect after-sales service, including installation, commissioning, training, spare parts supply, etc. As Professional Cement Ball Mill Suppliers, we provide one-stop after-sales service.
Price: Compare the price of different suppliers, but don’t only focus on the price. Choose products with high cost performance, which can save operation cost in the long run.

High Grinding Efficiency: Our cement ball mill adopts optimized grinding chamber design and reasonable matching of grinding media, which improves the grinding efficiency of the cement ball mill by 15-20% compared with traditional cement ball mill, and reduces the grinding time effectively.
•
Low Energy Consumption: Adopting energy-saving motor and advanced transmission structure, the power consumption of our energy saving cement ball mill is 10-15% lower than similar cement ball mill products, which helps you save a lot of operation cost for the cement ball mill.
•
Stable & Reliable Operation: The whole cement ball mill is made of high-quality steel, with strict quality control during the production of the cement ball mill. The wear resistant cement ball mill liner and grinding media ensure the cement ball mill’s long-term stable operation with low failure rate.
•
Easy Maintenance: The cement ball mill has humanized structural design, convenient disassembly and assembly of vulnerable parts of the cement ball mill. We provide complete spare parts for cement ball mill, which reduces maintenance time and labor cost of the cement ball mill.
•
Adjustable Fineness: The output fineness of our cement ball mill can be flexibly adjusted according to your production needs, which makes the cement ball mill suitable for different types of cement production, such as portland cement.
•
Low Noise & Dust Free: Our cement ball mill is equipped with professional dust removal system and noise reduction device, the low noise cement ball mill meets international environmental protection standards, creating a clean working environment for the cement ball mill operation.
•
Customizable Design: We can provide customized cement ball mill according to your production capacity, material type and site conditions, including dry type cement ball mill and wet type cement ball mill.

Shandong Cement Production Line
Equipment: Φ3.2×13m Cement Ball Mill

Capacity: 60–80 t/h

Stable operation, high grinding efficiency and low energy consumption, fully meeting daily production requirements.
Henan Building Materials Plant

Equipment: Φ3.0×11m Cement Ball Mill

Capacity: 36–47 t/h

Simple structure, easy installation and maintenance, low noise, long service life of liners and steel balls.
Vietnam Cement Plant Project

Equipment: Φ4.2×13m Cement Ball Mill

Capacity: 110 t/h

Reached designed capacity on time, stable performance, low failure rate and passed customer inspection.
Uzbekistan Cement Production Line
Equipment: Customized Cement Ball Mill

Capacity: 1200 TPD

Customized structure and configuration, high output, short construction period and fast commissioning.

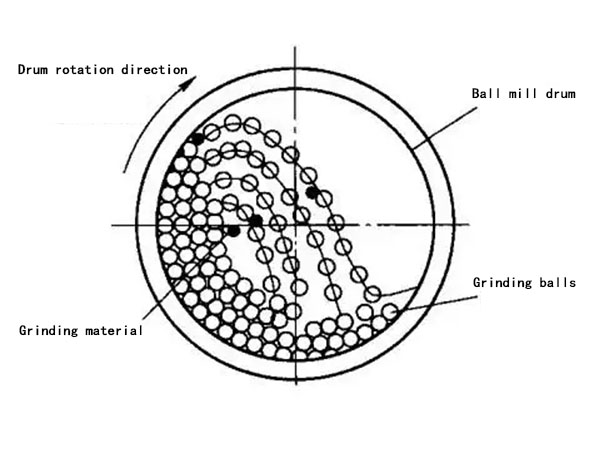

Cement Ball Mill Working Principle

The cement ball mill is composed of feeding part, discharging part, rotating part, transmission part (reducer, small transmission gear, motor, electric control) and other parts. The Cement Ball Mill Working Principle is simple and efficient, and it works as follows:
1.The material (cement clinker, slag, fly ash, etc.) is fed into the grinding chamber of the cement ball mill through the feeding device of the cement ball mill.
2.The motor drives the cylinder of the cement ball mill to rotate through the reducer and transmission gear. The grinding media (steel balls) in the cylinder of the cement ball mill are lifted to a certain height by the centrifugal force and then fall down, impacting and grinding the material in the cement ball mill.
3.The material is continuously ground in the cylinder of the cement ball mill, and the qualified material is discharged through the discharging device of the cement ball mill, while the unqualified material is retained in the cylinder of the cement ball mill for further grinding.
4.For the closed circuit cement ball mill, the discharged material from the cement ball mill is sorted by the separator, and the unqualified material is returned to the cement ball mill for regrinding, so as to improve the grinding efficiency and product quality of the cement ball mill.

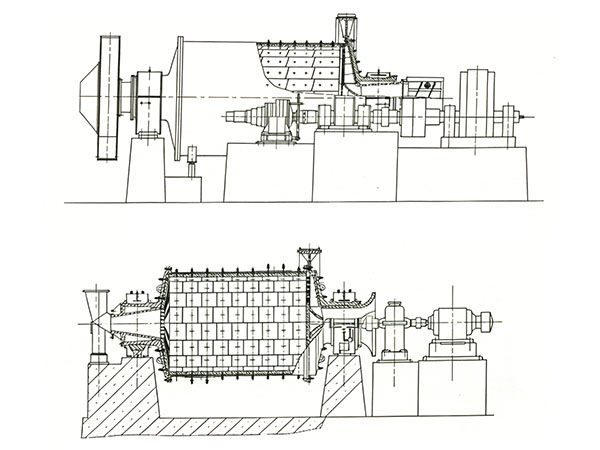

Cement Ball Mill Structure

The Cement Ball Mill Structure is scientific and reasonable, which ensures stable operation and easy maintenance. The main components of the cement ball mill include:

Feeding Device: It is used to transport materials into the grinding chamber stably and evenly, ensuring continuous feeding and avoiding material accumulation. The feeding device of the cement ball mill is made of wear-resistant materials, which has a long service life.
Grinding Chamber: The core part of the cement ball mill, which is composed of cylinder, liner plate and grinding media. The cylinder is made of high-quality steel plate, and the liner plate is wear-resistant, which can protect the cylinder and improve grinding efficiency.
Transmission System: Including reducer, motor, transmission gear and other parts, which provides power for the rotation of the cylinder. The transmission system of the cement ball mill is designed with high efficiency and low noise, ensuring stable power output.
Discharging Device: It is used to discharge the ground qualified materials, and the discharge speed can be adjusted according to the production needs, ensuring the continuity of production.
Electric Control System: It is used to control the operation of the whole cement ball mill, including start, stop, speed adjustment, etc. The electric control system is intelligent and easy to operate.

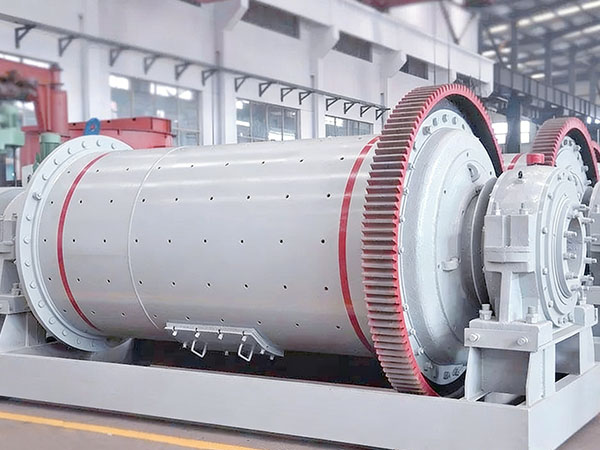

Cement Ball Mill Maintenance

Regular Cement Ball Mill Maintenance can extend the service life of the equipment, reduce failure rate and ensure stable production. The main maintenance items are as follows:

Daily Inspection: Check the operation status of the motor, reducer, transmission gear and other parts, check whether there is oil leakage, abnormal noise and other phenomena, and deal with them in time if any.
Lubrication Maintenance: Regularly add lubricating oil to the transmission parts of the cement ball mill, such as reducer, bearing, etc., to ensure smooth operation and reduce wear.
Wear Part Replacement: Regularly check the wear condition of the liner plate, grinding media and other vulnerable parts of the cement ball mill. If the wear is serious, replace them in time to ensure grinding efficiency.
Cleaning Maintenance: Regularly clean the grinding chamber, feeding device and discharging device of the cement ball mill to avoid material accumulation and blockage.
Annual Maintenance: Conduct a comprehensive inspection and maintenance of the whole cement ball mill every year, including disassembly, inspection, repair and replacement of parts, to ensure the equipment is in good condition.

Why Choose Our Cement Ball Mill?

Professional Cement Ball Mill Manufacturer: We have more than 10 years of experience in manufacturing cement ball mill and other grinding equipment, with advanced production technology and perfect quality control system for cement ball mill.
Factory Direct Price for Cement Ball Mill: We are the direct cement ball mill factory, no middleman, so we can provide you with high-quality cement ball mill products at competitive price for Ball Mills for Sale.
Rich Export Experience of Cement Ball Mill: Our cement ball mill has been exported to more than 50 countries and regions, such as Africa, Middle East, Southeast Asia, South America, etc., and our cement ball mill has won good reputation from customers.
Strict Quality Control for Cement Ball Mill: All cement ball mill products are manufactured in accordance with ISO and CE standards, and each cement ball mill will go through strict inspection before delivery.
Certifications for Cement Ball Mill: We have ISO9001, CE, SGS and other certifications for our cement ball mill, which can meet the import requirements of different countries for cement ball mill.
Customer-oriented Service for Cement Ball Mill: We always take customer needs as the core, provide personalized cement ball mill solutions and thoughtful service, and establish long-term cooperative relations with customers.

Contact Us & Get Inquiry for Cement Ball Mill

As one of the leading manufacturers of cement ball mills, DARKO is able to offer high-quality cement ball mills at competitive factory prices.

Our engineering team boasts extensive experience in cement ball mill design, and we also provide professional technical solutions for mineral processing equipment design and complete production line configuration.

If you are interested in our cement ball mills, welcome to contact us at any time.

We also provide customized services to fully meet the diverse demands of different customers.

What is the capacity of your cement ball mill?

Our cement ball mill capacity ranges from 10 tph to 200 tph, and we can provide customized capacity of cement ball mill according to your needs. The common cement ball mill models are 2.2x7m, 2.4x13m, 3.2x13m, etc.

Can you customize the cement ball mill according to my requirements?

Yes, we can. We provide customized cement ball mill service, including cement ball mill diameter, length, capacity, drive type (center drive or edge drive), dry type or wet type cement ball mill, etc. Please tell us your specific requirements for the cement ball mill, and we will design the best cement ball mill solution for you.

What’s the delivery time of the cement ball mill?

The delivery time of the cement ball mill is 30-60 days, depending on the cement ball mill model and quantity. For customized cement ball mill products, the delivery time may be slightly longer. We will arrange production of the cement ball mill as soon as possible after receiving your order.

What’s the price of your cement ball mill?

The price of cement ball mill depends on the cement ball mill model, capacity, material and other factors. Please send us your required capacity and other requirements for the cement ball mill, and we will provide you with the latest and most competitive price for the cement ball mill.
