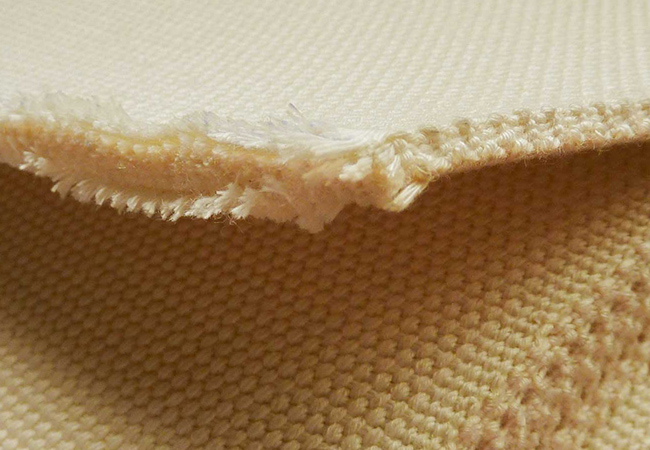

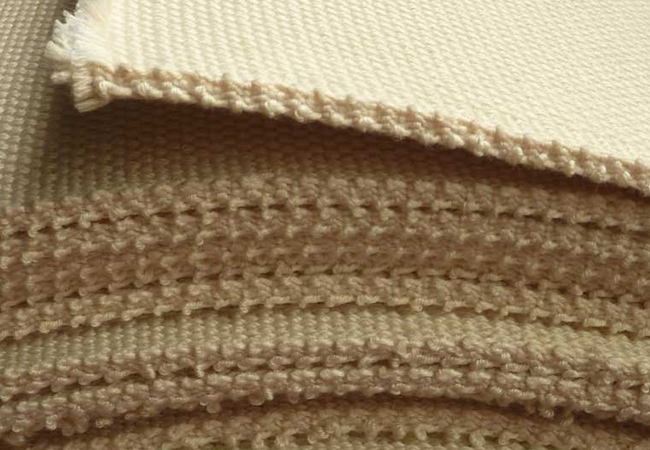

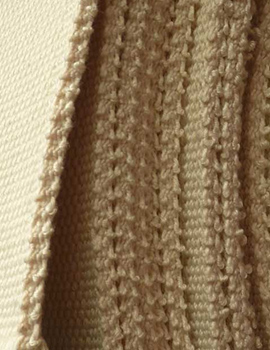

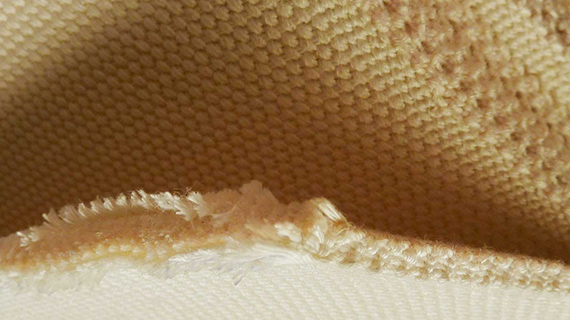

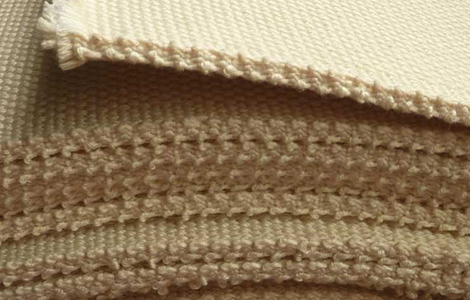

Aramid Air Slide Fabric
Aramid Air Slide Fabric is an advanced industrial textile engineered for high-temperature, high-wear pneumatic conveying systems. Made from meta-aramid fibers, it delivers exceptional heat resistance, durability, and energy-efficient powder transport in demanding industries like cement, metallurgy, and chemicals.
- Extreme Temperature Resistance
- Superior Mechanical Strength
- Precision Air Permeability
- Chemical & Environmental Resistance
- Eco-Efficient Performance
Core Functions
Aramid Air Slide Fabric is a high-performance conveying solution that utilizes aramid fibers (such as Nomex® or Kevlar®) to enable efficient, low-energy powder transport. Its key features include exceptional heat resistance (withstanding continuous temperatures up to 220°C), flame retardancy, and chemical resistance, making it ideal for demanding industries like cement, metals, and chemicals. The fabric’s precision air permeability ensures uniform material flow at low pressure (0.1–0.3 bar), while its anti-static and wear-resistant properties enhance safety and durability. Compared to mechanical conveyors, it reduces energy consumption by 30–50% and prevents material contamination, offering a clean, reliable alternative for powder handling.
- Technical Specifications
- Design & Construction
- Industry Applications
- Competitive Advantages
- Key Features & Benefits
| Parameter | Value | Test Standard |
|---|---|---|
| Material | Meta-aramid fiber blend | ISO 1833 |
| Weight | 900±50 g/m² | ISO 3801 |
| Thickness | 2.2±0.3 mm | ISO 5084 |
| Air Permeability | 8-12 m³/m²/min | ISO 9237 |
| Tensile Strength | ≥3000N/5cm (L), ≥2500N/5cm (T) | ISO 13934-1 |
| Max Operating Temp | 220°C (continuous), 250°C (peak) | ASTM D3045 |
| LOI (Flame Resistance) | >28% | ASTM D2863 |
3-Layer Composite Weave:
Top Layer: Tightly woven aramid with anti-adhesion coating
Core Layer: High-porosity mesh for airflow regulation
Base Layer: Reinforced backing for dimensional stability
Edge Reinforcement: Polyester selvage prevents fraying
Customizable Features: Width (500-4000mm), surface treatments, conductivity
✔ Cement Plants: Kiln feed, cement powder, hot fly ash
✔ Metallurgy: Alumina, metal powders, calcined minerals
✔ Chemicals: Carbon black, PVC, catalyst powders
✔ Energy: Biomass, coal dust, CFB boiler residues
✔ Food Grade: Flour, starch, powdered additives (FDA-compliant variants)
| Feature | Aramid Fabric | Standard Polyester | Fiberglass |
|---|---|---|---|
| Max Temp | 220°C | 150°C | 280°C |
| Abrasion Life | ★★★★★ | ★★☆☆☆ | ★★★☆☆ |
| Flex Endurance | ★★★★★ | ★★★☆☆ | ★★☆☆☆ |
| Chemical Resistance | ★★★★★ | ★★★☆☆ | ★★★★☆ |
| Cost Efficiency | ★★★★☆ | ★★★★★ | ★★☆☆☆ |
1. Extreme Temperature Resistance
Continuous use up to 220°C (short-term 250°C)
Thermal stability: Minimal shrinkage/deformation under heat
Flame-retardant: Self-extinguishing (LOI >28)
2. Superior Mechanical Strength
Tensile strength: 3000N/5cm (longitudinal), 2500N/5cm (transverse)
Abrasion resistance: 3X longer lifespan vs. standard polyester fabrics
Anti-flex fatigue: Withstands repeated bending in dynamic applications
3. Precision Air Permeability
Controlled porosity: 8-12 m³/m²/min @500Pa (customizable)
Uniform airflow distribution (<±3% deviation) for consistent material fluidization
Anti-clogging design: Open weave structure resists particle buildup
4. Chemical & Environmental Resistance
Acid/alkali resistant (pH 2-12)
Hydrolysis-resistant for humid environments
Anti-static options available (surface resistivity <10⁹ Ω)
5. Eco-Efficient Performance
Reduces energy consumption by 20-40% vs. screw conveyors
Zero lubrication required (maintenance-free operation)
FDA-compliant grades available for food/pharma applications
Working Principle of Aramid Air Slide Fabric
Aramid air slide fabric operates by introducing low-pressure air (0.1-0.5 bar) through the bottom air chamber, which uniformly penetrates the specially woven aramid permeable fabric to form a stable air cushion layer on the surface. This fluidizes powdered materials into a “gas-solid mixed phase,” allowing them to slide naturally along the 4°-10° inclined chute under gravity. The high-temperature resistance of aramid fibers (220°C continuous/250°C peak) ensures stable operation in high-temperature environments. Compared to mechanical conveying systems, this air cushion conveying method saves 30-50% energy with no moving part wear, making it particularly suitable for high-temperature powder conveying in industries such as cement and metallurgy.
Related Products
Installation & Maintenance
Best Practices
Pre-Installation: Verify airbox flatness (≤2mm/m² unevenness)
Tensioning: Apply 1.5-2% stretch during mounting
Sealing: Use high-temp silicone at joints (withstand >200°C)
Maintenance Tips
Daily: Inspect for surface wear/blistering
Weekly: Reverse-pulse cleaning (0.3-0.5bar air)
Annually: Conduct permeability tests
Aramid fibers offer a unique combination of properties:
Exceptional heat resistance (continuous 220°C/peak 250°C)
Outstanding tensile strength (3000N/5cm)
Superior abrasion resistance (3x longer lifespan than polyester)
Natural flame retardancy (LOI>28)
Excellent flex fatigue resistance
Our aramid fabric maintains more consistent permeability:
Standard range: 8-12 m³/m²/min @500Pa
Uniformity deviation <±3% vs ±5-8% for polyester
Better long-term stability (less clogging)
Customizable permeability for specific applications
Maintenance is significantly reduced:
No lubrication needed
Monthly visual inspections recommended
Quarterly air pulse cleaning (0.3-0.5bar)
Annual permeability testing
Typical lifespan: 3-5 years in cement applications
Yes, our fabric is specially engineered for abrasion resistance:
Multi-layer construction with wear-resistant surface
Withstands highly abrasive materials
50% longer life than fiberglass in abrasion tests
Optional ceramic coating available for extreme conditions
