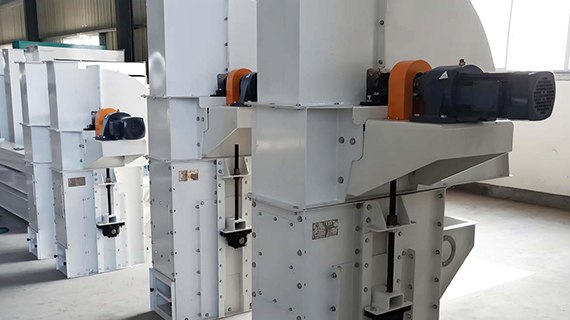

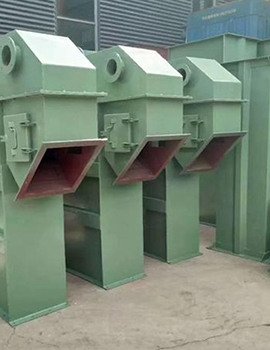

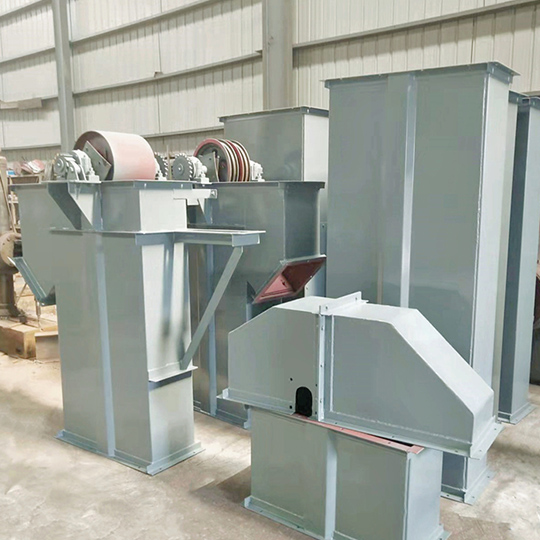

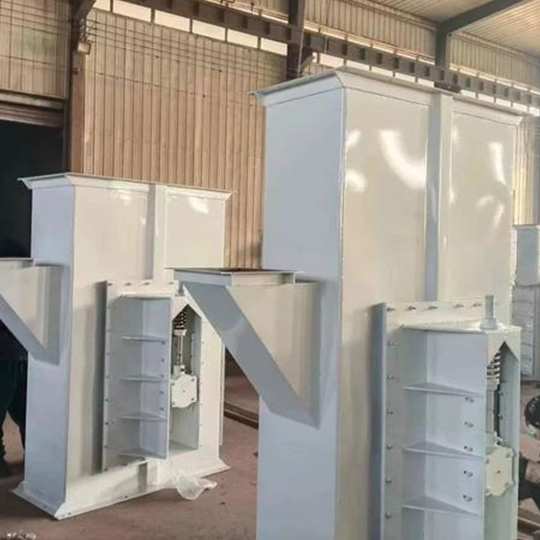

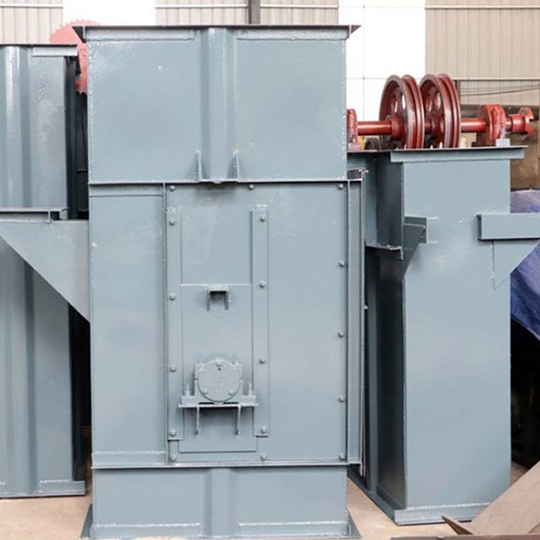

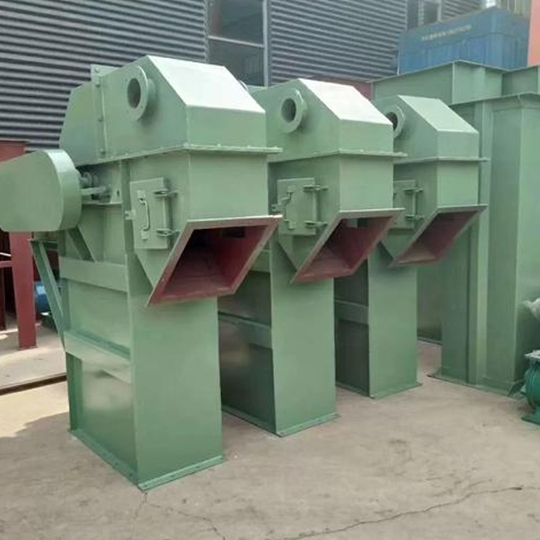

TD Series Bucket Elevator
TD-type bucket elevator is an industrial equipment designed for vertically conveying powdery, granular, and small lump materials with bulk density below 1.5 t/m³, which are non-abrasive or slightly abrasive. It features a rubber belt as traction component, with buckets fixed on the belt to form a closed-loop system. Driven by head and bottom pulleys, the equipment transports materials from the bottom feeding port to the top discharge port.
- High-Efficiency Vertical Conveying
- Low Wear & Extended Lifespan
- Stable & Reliable Operation
- Energy Saving
- Easy Maintenance
- Adaptable Configuration
Industry-Leading TD-type Bucket Elevator Manufacturer
As a premier TD-type bucket elevator manufacturer, DARKO brings over a decade of vertical conveying expertise to global industries. Our ISO-certified lifting systems, exported to 30+ countries, provide reliable material handling solutions for cement, mining, grain, chemical, and construction applications – delivering high-capacity vertical transport with energy-efficient operation.
Reliable Material Transportation Solutions
Heavy-duty chain drive for high-temperature materials (up to 250°C).
Gentle plate-chain design minimizes material breakage (ideal for fragile goods)..
High-lift chain design for vertical conveying up to 40m (ideal for cement/aggregates).
- Technical Specifications
- Key Features
- Applications
| Elevator Model | TD100 | TD160 | TD250 | TD315 | TD400 | TD500 | TD630 | ||||||||
| Bucket Type | Q | H | Zd | Sd | Zd | Sd | Zd | Sd | Zd | Sd | Zd | Sd | Zd | Sd | |
| Capacity | Centrifugal Type | 4 | 7 | 16 | 27 | 38 | 59 | 42 | 67 | 68 | 110 | 96 | 154 | 148 | 238 |
| Mixed Type | 32 | 50 | 54 | 85 | 70 | 112 | 110 | 218 | |||||||
| Bucket | Bucket Width | 100 | 160 | 250 | 315 | 400 | 500 | 630 | |||||||
| Bucket Volume | 0.15 | 0.3 | 1.2 | 1.9 | 3 | 4.6 | 3.75 | 5.8 | 5 | 9.4 | 9.3 | 14.9 | 14.6 | 23.5 | |
| Bucket Spacing | 200 | 350 | 450 | 500 | 560 | 625 | 710 | ||||||||
| Conveying Capacity | Width | 150 | 200 | 300 | 400 | 500 | 600 | 700 | |||||||
| Number of Layers (Max) | 3 | 4 | 5 | 6 | |||||||||||
| Drive Drum Diameter | 400 | 500 | 630 | 800 | |||||||||||
| Driven Drum Diameter | 315 | 500 | 630 | 630 | |||||||||||
| Bucket Operating Speed | Centrifugal Type | 1.4 | 1.6 | 1.8 | 2 | ||||||||||
| Mixed Type | 1.2 | 1.4 | 1.3 | 1.5 | |||||||||||
| Main Shaft Speed | Centrifugal Type | 67 | 61 | 54.6 | 48 | ||||||||||
| Mixed Type | 45.8 | 42.5 | 40 | 36 | |||||||||||
✔ High Efficiency – Optimized bucket design increases loading capacity by 30%
✔ Low Maintenance – Equipped with self-lubricating bearings and abrasion-resistant liners (50,000+ hours lifespan)
✔ Energy Saving – 15-20% lower power consumption than conventional elevators
✔ Dust-Free Operation – Fully enclosed structure prevents material spillage and dust pollution
✔ Smart Control – Optional PLC automation for seamless integration with material handling systems
1. Cement & Construction Industry
-
Raw meal & clinker transport in rotary kilns
-
Fly ash handling in concrete plants
2. Grain & Food Processing
-
Wheat, corn, rice vertical conveying (food-grade stainless steel)
-
Flour mills & feed production
3. Mining & Minerals
-
Coal powder, iron ore, copper concentrate transport
-
Heavy-duty chain elevators for abrasive materials
4. Chemical & Fertilizer Plants
-
Urea, NPK, phosphate bulk handling
-
Dust-tight & corrosion-resistant models
How It Works
-
Loading Zone – Material enters through the inlet chute into buckets
-
Vertical Lift – Driven by heavy-duty chains/belts via head pulley
-
Discharge – Centrifugal force (high-speed) or gravity discharge (low-speed)
-
Return Cycle – Empty buckets descend for reloading
Related Products
Why Choose Our TD Bucket Elevator?
The TD Series Bucket Elevator is a heavy-duty vertical conveyor designed for cement plants, grain storage, mining, and chemical industries. Engineered for high-capacity material handling, it efficiently transports powdered materials, granules, and small bulk solids vertically with capacities ranging from 4 to 238 m³/h and lifting heights up to 80 meters.
Built to ISO 9001 standards, this industrial bucket elevator features wear-resistant alloy steel construction, ensuring durability in harsh environments. It supports both centrifugal discharge and continuous (gravity) discharge, making it ideal for cement clinker, coal powder, grain, and mineral ores.
✅ Customizable Designs – Tailored for high-temperature, corrosive, or explosive environments
✅ Low Noise Operation – <75 dB for worker safety
✅ Easy Maintenance – Quick-access inspection doors & modular components
✅ Global Certifications – CE, ISO, ATEX (for hazardous areas)

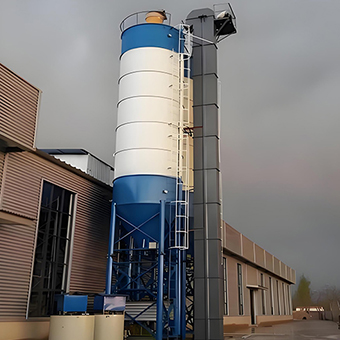

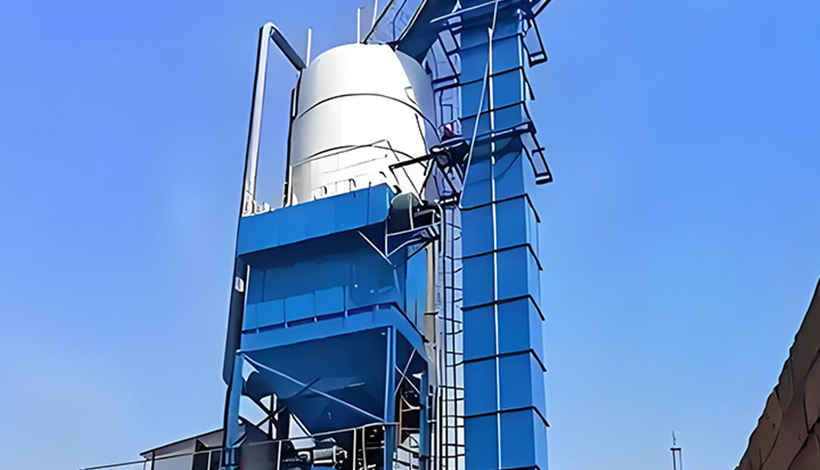

TD series bucket elevators can achieve vertical lifts up to 80 meters, with standard models covering 20-50m for most industrial applications (e.g., cement silos, grain storage). Custom heights are available.
They are ideal for:
-
Powders: Cement, fly ash, flour
-
Granules: Fertilizer, plastic pellets, grains (wheat/corn)
-
Abrasive materials: Sand, mineral ores, coal
Note: Sticky or high-moisture materials may require special coatings.
Features include:
-
Fully enclosed casing (IP65 rating)
-
Silicon sealing strips at joints
-
Dedicated airlocks at inlet/outlet
Optional: Bag filters for ultra-fine particles.
