LMC Series Pulse Jet Dust Collector
The LMC series pulse jet dust collector is a high-efficiency, modular dust filtration system designed for industrial applications such as building materials, chemicals, and food processing, delivering precise particulate control.
- Ultra-Low Emissions
- Intelligent Cleaning
- Space-Saving Design
- Extended Durability
- High-Temp Adaptability
- Quiet Operation

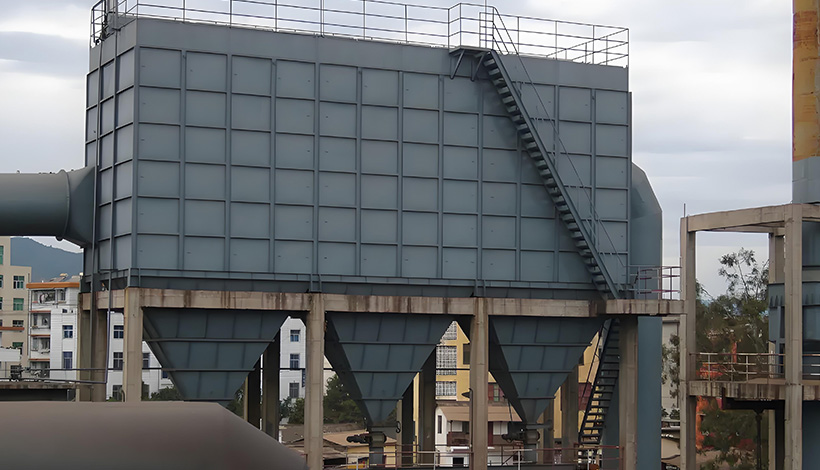

Industry-Leading LMC Series Pulse Jet Dust Collector Manufacturer
As a leading LMC series pulse jet dust collector manufacturer, DARKO brings over 10 years of expertise in industrial dust control. Our ISO-certified systems, exported to 30+ countries, deliver reliable solutions for cement, metallurgy, chemical, and lithium battery applications – combining energy efficiency with smart operation features.
High-Efficiency Dust Collection Solutions
High-efficiency pulse jet cleaning for heavy dust applications.
Designed specifically for the safe handling of combustible dust, effectively preventing dust explosions.
High-capacity design for heavy dust-load environments.
- Technical Specification
- Industry Solutions
| Parameter | Specification |
|---|---|
| Model Range | LMC-32 ~ LMC-384 |
| Filtration Area (m²) | 24 ~ 576 |
| Airflow Capacity (m³/h) | 1,440 ~ 34,560 |
| Filtration Velocity (m/min) | 1.0 ~ 2.0 |
| Operating Temperature (°C) | ≤120 (Standard) / ≤260 (High-Temp Version) |
| Filtration Efficiency | ≥99.5% (for 0.5μm particles) |
| Cleaning Method | Pulse Jet (Auto/Timer/Differential Pressure) |
| Blow Pressure (MPa) | 0.4 ~ 0.6 |
| Inlet Dust Concentration (g/m³) | ≤1,000 |
| System Resistance (Pa) | 1,200 ~ 1,800 |
| Filter Bag Material | Polyester Needle Felt / Anti-static / Membrane-coated / High-Temp Optional |
| Power Supply (V) | 380V/50Hz (3-Phase) |
| Total Power (kW) | 0.75 ~ 5.5 (Varies by model) |
1. Cement Plant Dust Control
Solves high-humidity dust clogging in kiln exhaust
Case study: 90% emission reduction, $25K/year power savings
2. Metal Welding Fume Extraction
Anti-static filter bags + spark arrestor
Complies with OSHA workplace safety standards
3. Chemical Explosion-Proof Systems
ATEX-certified explosion-proof design
Fluorine-coated filters resist acid/alkali corrosion

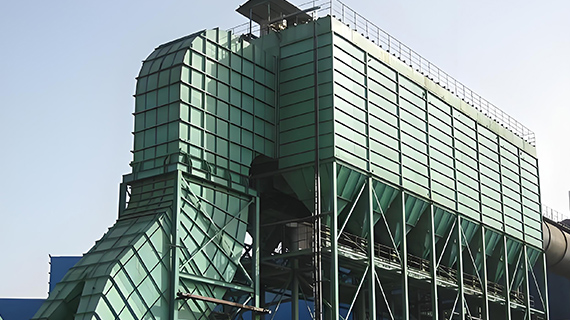

LMC Series Pulse Jet Dust Collector Working Principle
The LMC series pulse jet dust collector utilizes a high-efficiency pulse-jet cleaning mechanism to maintain optimal airflow while removing dust. Contaminated air enters through the inlet, where larger particles settle in the hopper while finer dust is captured on the outer surface of the filter bags. Clean air passes through the filter media and exits via the outlet. When dust accumulation increases resistance, compressed air pulses (0.4-0.6 MPa) are released in short bursts, creating shockwaves that dislodge dust into the hopper without interrupting operation. This automated system, controlled by timers or pressure sensors, ensures continuous, energy-efficient filtration with ≥99.5% efficiency for particles as small as 0.5μm. Its robust design makes it ideal for demanding industrial applications such as cement production, metal processing, and chemical manufacturing.
Related Products
Why Choose the LMC Series Pulse Jet Baghouse Dust Collector?
In the field of industrial dust control, the LMC Series Pulse Jet Baghouse Dust Collector stands out as the preferred solution for its exceptional performance, intelligent control, and extended service life. Here are six compelling reasons to choose the LMC Series:
1. Industry-Leading Filtration Efficiency
✅ 99.9%+ filtration accuracy, capable of capturing ultrafine particles as small as 0.1μm (e.g., welding fumes, chemical dust), easily complying with stringent emission standards like PM2.5 and ISO 14001.
2. Intelligent Pulse Cleaning for Energy Savings
⚡ Equipped with 0.5MPa high-pressure pulse-jet cleaning and PLC smart control (timed/differential pressure modes), it consumes 30% less energy than traditional mechanical shaker dust collectors, with 40% lower compressed air usage.
3. Extended Filter Bag Life, Minimal Maintenance
🛠️ PTFE membrane-coated filter bags (optional anti-static, water-repellent, or oil-resistant variants) last 3-5 years, while the quick-release design cuts maintenance time by 70%, significantly reducing operational costs.
4. Customized Solutions for All Industries
🏭 Offers 20+ configurations tailored to different sectors:
Cement/Metallurgy: High-temperature resistance (≤260°C)
Chemicals/Pharma: Explosion-proof & corrosion-resistant (ATEX-certified)
Food/Lithium Battery: FDA-compliant coatings & anti-powder-leakage designs
5. Unmatched Reliability, Lowest Failure Rate
📉 Core components (solenoid valves, filter cages) use aerospace-grade materials, passing 50,000-hour endurance tests with a <0.5% failure rate (industry average: 3%).
6. Proven Success in Global Applications
🌍 Trusted by 500+ enterprises including Huaxin Cement, Conch Cement, and BASF, delivering:
90% reduction in dust emissions
25% lower energy consumption
60% decrease in maintenance costs
The LMC series features five-dimensional performance enhancement:
3D airflow distribution technology (reduces bag wear)
Dual-diaphragm pulse valves (1.5 million cycles lifespan)
PTFE nano-coated filter media (99.99% efficiency)
Smart differential pressure control (30% energy saving)
Modular quick-assembly structure (50% faster installation)
Under standard conditions:
Standard polyester bags: 1.5-2 years
PTFE membrane bags: 3-5 years
Anti-static bags (e.g., for lithium battery industry): 2-3 years
Note: Actual lifespan depends on dust characteristics (stickiness, corrosivity)
Three temperature solutions available:
Standard: ≤120°C (default)
Medium-temperature: 120-260°C (fiberglass bags + thermal coating)
Ultra-high-temperature: 260-300°C (requires gas cooling system)
