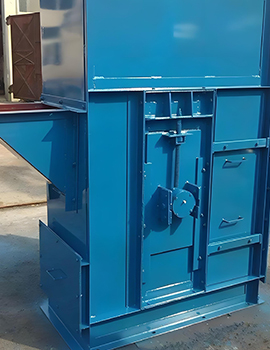

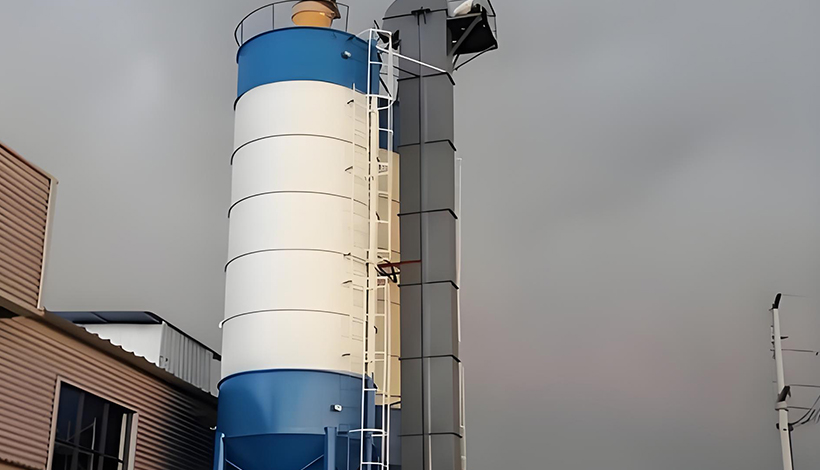

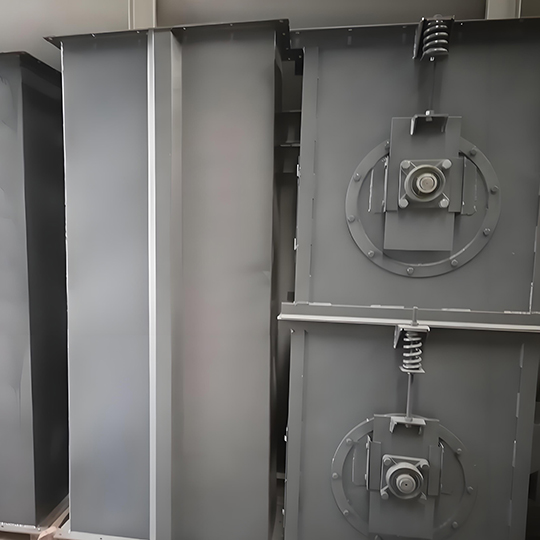

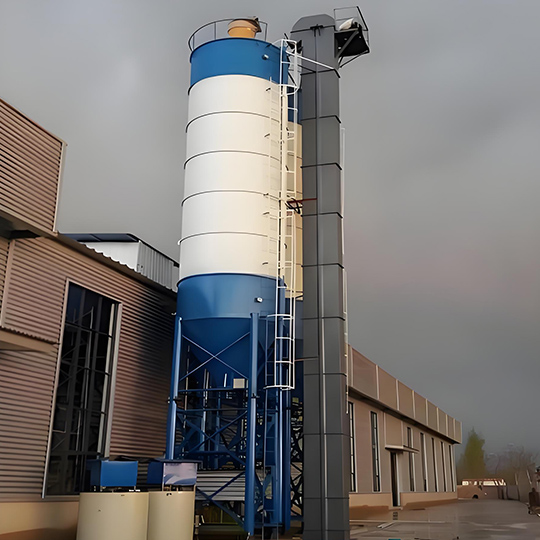

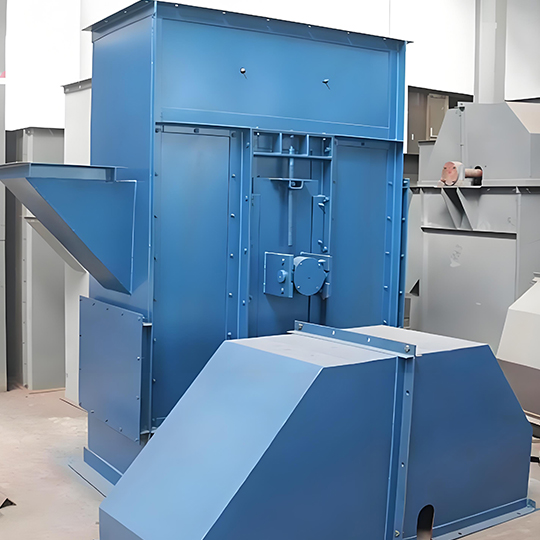

HL Series Bucket Elevator
The HL Series Bucket Elevator is a chain-type vertical conveying equipment specially designed for industries such as cement, mining, chemical, and power. It is suitable for continuous vertical lifting of medium to large lump materials. Featuring high-strength alloy chains and wear-resistant buckets, it offers large conveying capacity, stable operation, and long service life, making it an ideal material handling solution for modern industrial and mining enterprises.
- High Capacity
- High-Strength Chains
- Wide Adaptability
- Excellent Sealing
- Easy Maintenance
- Multiple Drive Options
Industry-Leading HL Series Bucket Elevator Manufacturer
As a premier HL series bucket elevator manufacturer, DARKO brings over a decade of vertical conveying expertise to global industries. Our ISO-certified lifting systems, exported to 30+ countries, provide reliable material handling solutions for cement, mining, grain, chemical, and construction applications – delivering high-capacity vertical transport with energy-efficient operation.
Reliable Material Transportation Solutions
Heavy-duty chain drive for high-temperature materials (up to 250°C).
Gentle plate-chain design minimizes material breakage (ideal for fragile goods).
Quiet belt operation with 15% lower energy consumption (best for lightweight materials).
- Technical Specifications
- Key Advantages
- Applications & Suitable Materials
| Model | Capacity(m³/h) | Lifting Height(m) | Bucket Volume(L) | Bucket Spacing(mm) | Motor Power(kW) |
|---|---|---|---|---|---|
| HL300 | 16-25 | ≤30 | 3.2 | 400 | 3-5.5 |
| HL400 | 25-45 | ≤30 | 7.8 | 500 | 5.5-11 |
| HL500 | 45-80 | ≤30 | 14.5 | 600 | 11-18.5 |
| HL600 | 80-120 | ≤30 | 22 | 700 | 18.5-30 |
| HL700 | 120-160 | ≤30 | 30 | 800 | 30-45 |
✔ High Capacity – Conveying capacity up to 16-160m³/h, meeting various production needs
✔ High-Strength Chains – Alloy steel forged chains with breaking force ≥250kN, wear-resistant and durable
✔ Wide Adaptability – Handles powdered, granular, and lump materials (max. lump size ≤50mm)
✔ Excellent Sealing – Fully enclosed structure prevents dust leakage, meeting environmental standards
✔ Easy Maintenance – Modular design allows easy inspection and replacement of key components
✔ Multiple Drive Options – Compatible with variable frequency drive motors for precise control
Industries Served
-
Cement Industry: Raw meal, clinker, slag, fly ash conveying
-
Mining & Metallurgy: Iron ore, copper ore, bauxite lifting
-
Power Industry: Coal, furnace slag, desulfurization gypsum conveying
-
Chemical Industry: Fertilizers, plastic pellets, PVC powder
-
Grain Processing: Wheat, corn, soybeans and other grains
Materials Handled
✔ Powdered Materials: Cement, fly ash, mineral powder
✔ Granular Materials: Fertilizers, plastic pellets, grains
✔ Lump Materials: Coal, ores (max. lump size ≤50mm)
✔ High-Temperature Materials: Hot clinker (≤250℃)
Working Principle of HL Bucket Elevator

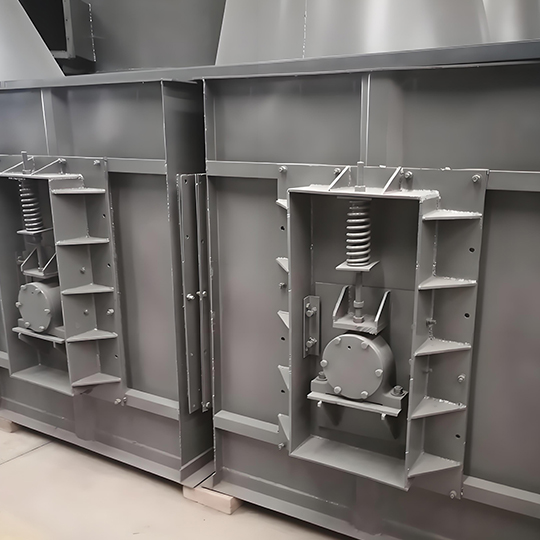

The HL-type centrifugal chain bucket elevator consists of moving components (buckets and traction chains), an upper section with drive sprockets, a lower section with tensioning wheels, intermediate casing, drive unit, and backstop brake device. The buckets are arranged at intervals and employ a “scooping method” for loading materials and a “centrifugal discharge method” for unloading. The traction mechanism of this elevator utilizes two endless circular chains to ensure smooth and efficient vertical material conveying.
-
Loading Phase: Material evenly enters buckets through bottom inlet
-
Lifting Phase: Chains carry buckets upward along vertical track
-
Discharging Phase: Material is ejected at the top by centrifugal force
-
Return Phase: Empty buckets descend on the other side to complete the cycle
Related Products
Why Choose HL Bucket Elevator?
-
Superior Heavy-Duty Performance
-
Forged alloy steel chains with ≥250kN breaking strength
-
Specially designed for continuous 24/7 operation in harsh industrial environments
-
Handles materials up to 250°C without performance degradation
-
Industry-Leading Efficiency
-
15-30% higher energy efficiency compared to conventional elevators
-
Advanced centrifugal discharge system ensures complete material evacuation
-
Low-friction design reduces power consumption
-
Unmatched Reliability
-
Hardened alloy components provide 3-5X longer service life
-
Sealed bearings and automatic lubrication system minimize maintenance
-
<1% downtime guarantee with proper maintenance
-
Ultimate Material Versatility
-
Engineered to handle everything from fine powders to 50mm lumps
-
Special bucket options for sticky, abrasive or high-temperature materials
-
Corrosion-resistant models available for chemical applications
-
Smart Customization Options
-
Modular design allows for easy capacity upgrades
-
Variable frequency drive for precise speed control
-
Explosion-proof configurations for hazardous environments
-
Space-Saving Design
-
Compact footprint maximizes production floor space
-
Vertical conveying eliminates need for complex transfer systems
-
Flexible installation options for tight spaces
Standard models offer maximum lifting height of 30m. Custom multi-stage solutions are available for greater heights.
Yes, by selecting notched buckets or special coated buckets and appropriately reducing operating speed.
Under normal conditions, alloy steel chains last 3-5 years. Regular lubrication extends service life.
