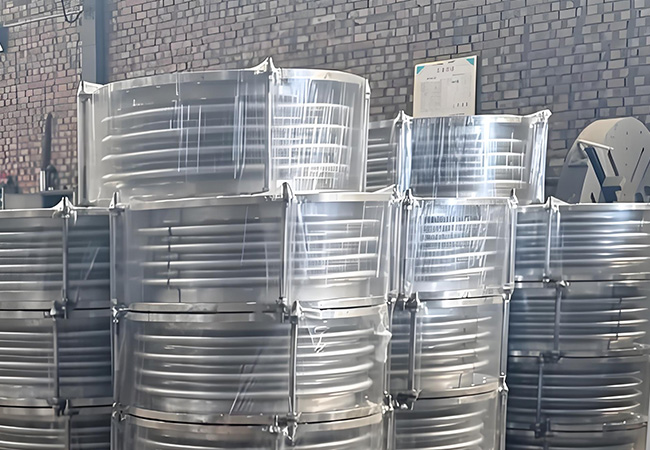

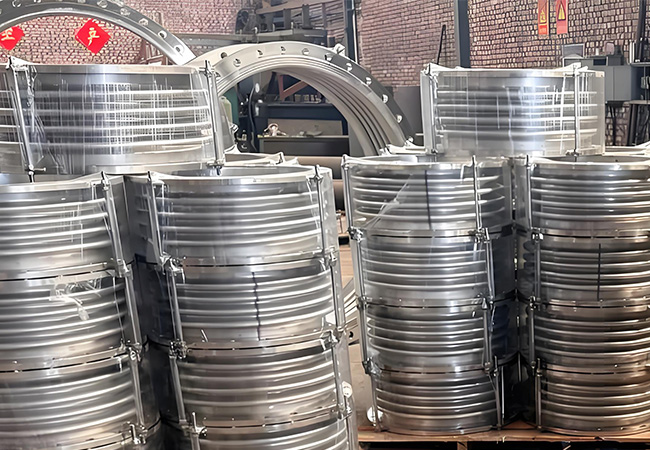

Expansion Joints
As a leading manufacturer specializing in core industrial equipment, we focus on producing industrial-grade bellows expansion joints (also known as Metal Compensators). Featuring a flexible metal bellows structure, they efficiently absorb multi-directional pipeline movements (axial, lateral, angular), thermal expansion, and vibration shocks. Our core product line includes metal expansion joints, bellows expansion joints, high-pressure compensators, and rectangular duct expansion joints. All are rigorously engineered and tested to adapt to harsh industrial conditions such as dust collection systems, conveyor systems, power plants, and cement factories. Using high-quality materials like stainless steel and carbon steel, we achieve leak-proof sealing and long service life, fundamentally ensuring the safety and stability of your pipeline system—making them the ideal solution for heavy-duty industrial applications.
- Superior Compensation Capability
- Extended Service Life
- Wide Pressure Adaptability
- Customized Designs
- Easy Installation
Core Functions
Expansion joints (compensators) are critical flexible connectors in industrial piping systems. They perform three core functions through the elastic deformation of metal bellows or non-metallic flexible elements:
Precisely compensate for axial/lateral/angular displacement caused by thermal expansion, mechanical vibration, or foundation settlement;
Balance internal pressure thrust through unique structural designs to protect pipe supports;
Effectively isolate equipment vibration transmission, reducing noise and extending system service life.
Related Conveying Equipment
Vertically lifts bulk materials efficiently using a continuous chain of containers.
Horizontally transports bulk goods continuously over long distances at high capacity.
Gently moves fine powders using aeration to create a fluid-like conveyor.
- Product Types & Selection Guide
- Technical Specifications
- Industry Applications
- Key Advantages
- Installation & Maintenance Guidelines
- Customization
- Product Types & Series
We offer 8 core types of expansion joints tailored to different movement directions, pressure balance requirements, and applications:
1. By Function
(1) Metallic Expansion Joints
| Type | Movement Direction | Key Features | Typical Applications |
|---|---|---|---|
| Single Axial Expansion Joint | Axial movement | Absorbs compression/extension only | Steam pipelines, straight chemical pipes |
| Single Hinged Expansion Joint | Single-plane angular | Allows angular deflection, partial thrust balance | L/Z-shaped pipe layouts |
| Single Gimbal Expansion Joint | Multi-directional angular | Universal ring for 3D angular compensation | Marine pipelines, complex petrochemical lines |
| Universal Expansion Joint | Multi-directional | Dual-hinge design, large compensation capacity | Power plant ducts, long-distance pipelines |
| Tied Double Expansion Joint | Lateral + axial | Tie rods balance internal pressure thrust | High-pressure lateral displacement |
| Double Hinged Expansion Joint | Angular + axial | Symmetrical hinges for combined movement | Bridges, tank inlet/outlet pipes |
| Double Gimbal Expansion Joint | Omni-directional | Full 3D spatial compensation | Offshore platforms, aerospace fuel lines |
| Elbow Pressure Balanced Joint | Axial/angular | Self-balancing thrust, no external supports | High-pressure pump/boiler outlets |
(2) Non-Metallic Expansion Joints
-
Rubber Expansion Joints: Corrosion-resistant, vibration-damping for HVAC/chemical pipelines.
-
Fabric Expansion Joints: High-temperature resistant (≤500°C), lightweight for power plant ducts.
(3) Architectural Expansion Joints
-
For bridges, high-rise buildings, subways to prevent concrete cracking.
| Parameter | Metallic Expansion Joints | Non-Metallic Expansion Joints |
|---|---|---|
| Material | Stainless steel (304/316), carbon steel | EPDM/NBR rubber, fluoropolymer, fiber fabric |
| Temperature Range | -200°C ~ +1000°C | -50°C ~ +500°C |
| Pressure Range | Vacuum to 10MPa+ | 0.1~2.5MPa |
| Movement Capacity | Axial/lateral/angular | Multi-directional flexibility |
| Connection Type | Flange/welded/threaded | Flange/clamp |
Dust Collection Systems (Core)
Conveyor Systems (Core)
Power Plants
Cement & Steel Mills
Chemical & Petrochemical Industry
Industrial HVAC & Wastewater Treatment
- Superior High Temp & Pressure Resistance – Our heat-resistant expansion joints are constructed with high-quality alloy materials and a bellows design, stably withstanding temperatures up to 1200°C and pressures up to 40MPa. Perfect for extreme industrial conditions like boilers and furnaces, they effectively prevent deformation and leaks, ensuring continuous pipeline operation.
- Excellent Corrosion & Abrasion Resistance – Made from industrial-grade stainless steel, duplex steel, and other corrosion-resistant materials, they effectively resist chemical media, dust abrasion, and acid/alkali erosion. This significantly extends service life in dusty or chemical environments and reduces replacement costs.
- Precise Multi-Directional Movement – The flexible bellows structure allows for flexible compensation of axial, lateral, and angular movements, efficiently solving complex deformation issues in industrial pipelines. Adapts to various irregular layouts and protects pipeline connections.
- Industrial-Grade Vibration & Noise Reduction – Designed to absorb strong vibrations from dust collectors and conveyors, the flexible structure protects connected equipment and reduces operational noise, optimizing workplace safety.
- Customized & Precise Fit – As a professional custom expansion joint supplier, we offer non-standard solutions based on specific pipeline dimensions and operating parameters (temperature/pressure/dust concentration), ensuring a perfect match for your industrial equipment.
- High-Strength Sealing & Longevity – Featuring industrial-grade flanged and welded connections for efficient leak-proof sealing. Combined with premium materials and precision manufacturing, the service life reaches 5-10 years, greatly reducing maintenance costs and downtime.
Installation Tips
- Before installation, verify that the material, pressure rating, and temperature range match the on-site conditions (e.g., dust collection, high-temperature pipes). Also, confirm media compatibility (corrosion resistance, abrasion resistance) to ensure a proper fit.
- Ensure precise alignment between the pipeline and expansion joint. Forced installation is strictly prohibited to avoid permanent deformation of the bellows and potential high-pressure leaks. When installing metal bellows joints, reserve a reasonable movement allowance to prevent damage from over-compression or over-extension.
- Use industrial-grade high-strength fasteners (bolts, nuts) for flanged connections, tightening evenly to standard torque for a tight seal. Welded joints must be installed by certified professionals, with post-weld inspection to ensure sealing and strength.
- Install dedicated supports and hangers near the joint. Spacing must be precisely calculated based on pipeline load to avoid stress transfer to the joint, which could damage the bellows and affect service life.
Maintenance Recommendations
- Regularly inspect (monthly recommended for industrial use) the bellows and sealing surfaces for wear, corrosion, or leaks. Increase frequency for harsh conditions (high temp, pressure, dust, corrosion) to detect issues early.
- When cleaning, use appropriate agents based on the media (remove dust for dust collection systems, corrosive substances for chemical plants). Avoid contact with industrial oil or strong solvents for rubber joints to prevent aging.
- Check fastener tightness regularly. Re-torque bolts in high-temperature environments affected by thermal expansion and contraction. Replace worn or corroded parts (bellows, gaskets) with industrial-grade equivalents to maintain performance.
- Establish a comprehensive maintenance file, recording installation date, operating parameters, and service records. A full inspection every 5 years is recommended for industrial use to ensure long-term stability.
Industrial pipeline requirements (dust collection, conveying, high temp/pressure) are highly customized. As a specialized manufacturer, we offer full-process customization and professional selection support to ensure a perfect match for your equipment and conditions.
Selection Support
Axial Expansion Joint
Lateral Expansion Joint
Universal Expansion Joint
Rectangular Expansion Joint

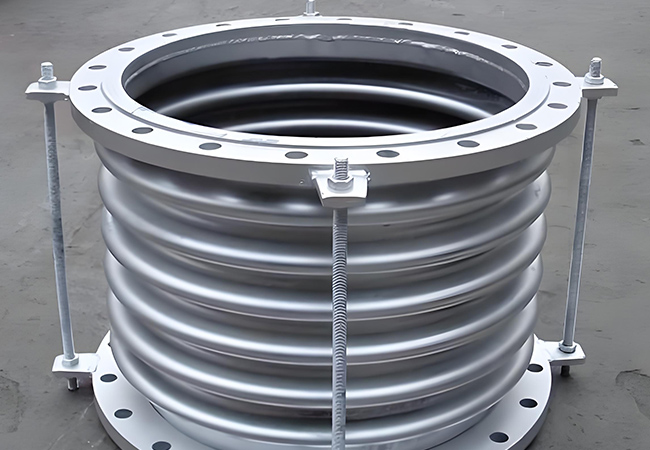

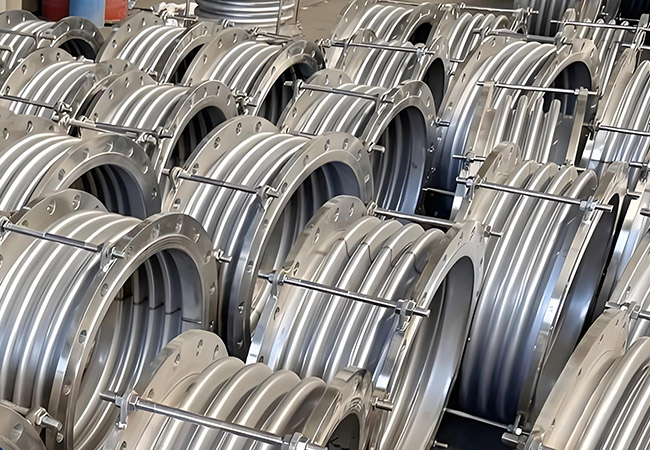

Metal Bellows Expansion Joint (Flagship)
Industrial Rubber Expansion Joint
Working Principle of Expansion Joints
Expansion joints utilize flexible components (such as metal bellows, rubber, or fabric) to actively absorb axial/lateral/angular displacement in piping systems caused by thermal expansion, mechanical vibration, or foundation settlement. Their core mechanisms operate in three ways:
-
Displacement Compensation – Bellows compress/extend or hinges rotate to relieve pipe stress;
-
Force Balancing – Pressure-balanced structures (e.g., elbow or tie rods) counteract internal pressure thrust;
-
Vibration Isolation – Non-metallic materials dampen mechanical vibrations.
For example, in steam pipelines, metal bellows compress when heated and rebound when cooled, maintaining a tight seal while protecting pipe anchors from damage.
Related Products
Selection Guide
❓ How to choose?
-
Axial movement dominant → Single Axial or Tied Double Joint.
-
Angular + thrust balance → Single Hinged/Gimbal Joint.
-
Complex 3D movement → Double Gimbal Expansion Joint.
-
High-pressure thrust balance → Elbow Pressure Balanced Joint.
❓ Need pressure balancing?
-
For high-pressure systems (≥1.6MPa), prioritize Elbow Pressure Balanced or Tied Double Joint to avoid thrust damage.
Expansion joints (or compensators) are designed to absorb thermal expansion, vibration, and movement in pipelines, ducts, and structures. They prevent stress buildup, leaks, and damage caused by temperature changes, pressure fluctuations, or mechanical shifts.
Yes, dust collection is a core application. We customize joints based on duct size, dust concentration, and temperature, using metal or composite materials to ensure a tight seal, wear resistance, and leak-proof performance.
-
Metallic joints (stainless steel, carbon steel) are ideal for high-pressure, high-temperature applications (e.g., steam pipes, refineries).
-
Non-metallic joints (rubber, fabric) excel in corrosion resistance, noise reduction, and lower-pressure systems (e.g., HVAC, chemical ducts).
Pressure-balanced types (e.g., elbow pressure balanced, tied double joint) are critical for high-pressure systems (≥1.6MPa) where internal thrust could damage pipes or anchors. Common in boiler outlets, pump connections, and large pipelines.
Yes! Universal joints (dual-hinge) or tied double joints compensate for lateral + axial displacement. For pure lateral movement, consider single hinged or gimbal designs.
