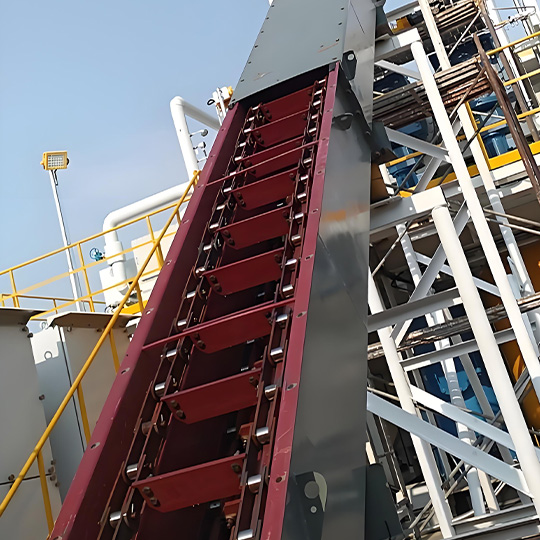

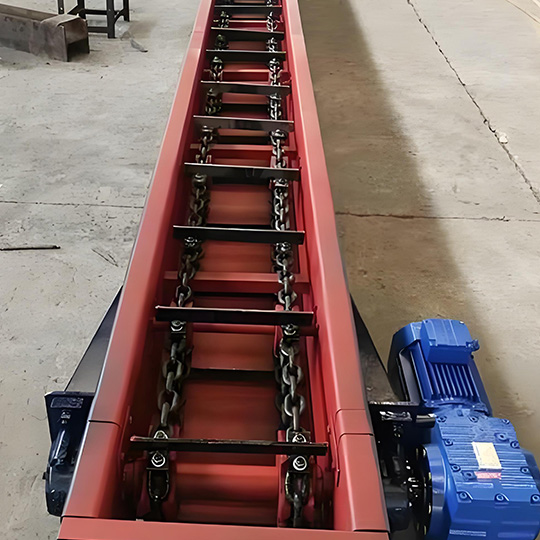

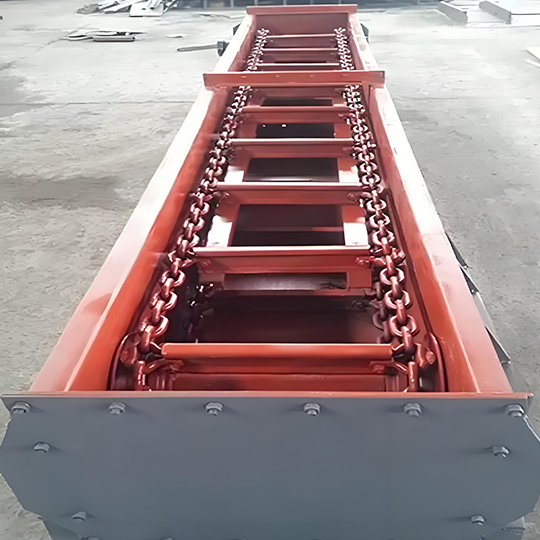

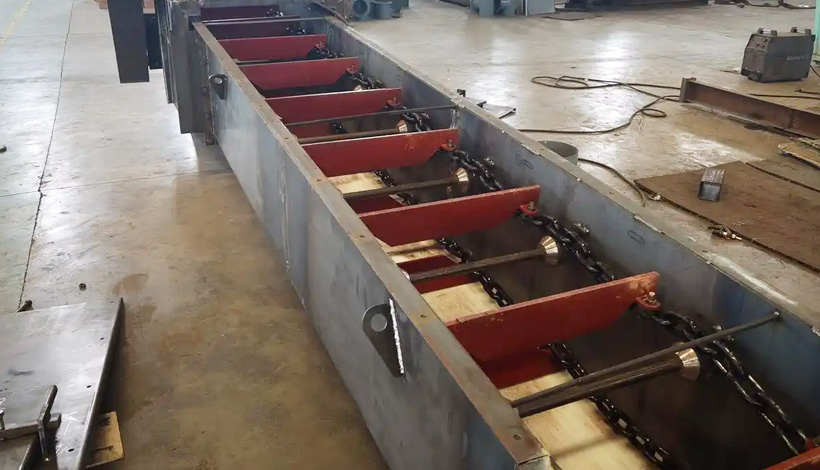

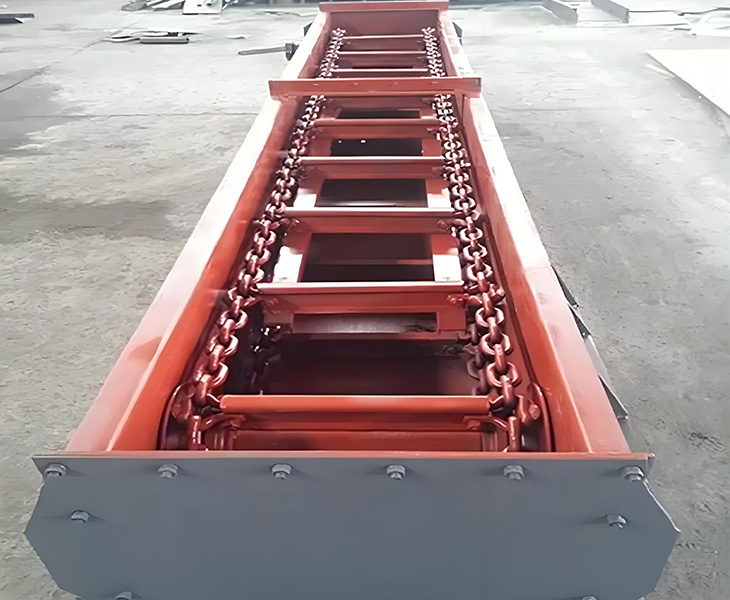

Chain Conveyor
- High Capacity Performance
- Energy Efficient Operation
- Closed System Safety
- Extended Service Life
- Adaptable Configuration
- Low Maintenance Costs
Industry-Leading Chain Conveyor Manufacturer
As a leading chain conveyor manufacturer, DARKO brings over 10 years of expertise in industrial conveying systems. Our ISO-certified equipment, exported to 30+ countries, delivers reliable solutions for coal, metallurgy, chemical, power, and cement applications – combining high efficiency with intelligent control features.
Chain Scraper Conveyor Working Principle
The chain scraper conveyor transports bulk materials through a sealed trough using circulating chains with attached flights. Driven by a motor, the head sprocket pulls dual strands of chains, causing the welded flights to push materials along the trough via positive displacement. As the material layer is agitated by the flights, internal pressure and friction are generated. When this force exceeds the friction between the material and trough walls, the bulk material flows in a fluidized state (mass-flow principle) at a speed nearly matching the chain velocity (0.1-0.5 m/s).
This system excels in three-dimensional conveying and dust containment. Specially designed flight angles (typically 45°-60°) and trough profiles enable horizontal, inclined (≤45°), and vertical configurations. The fully enclosed trough with wear-resistant linings ensures minimal dust leakage. Unlike conventional chain conveyors that rely solely on frictional drag, the scraper mechanism forcibly propels materials, making it ideal for powders and granular materials with poor flowability (e.g., cement, coal powder, grains). Energy consumption is 30%-50% lower than screw conveyors for equivalent capacity.
Advantages of Chain Conveyor
Screw conveyors offer compact, cost-effective, and versatile material handling with enclosed dust-free operation.
Fully enclosed design with zero dust leakage.
Handles horizontal, inclined and vertical transport.
30-50% more energy-efficient than screw conveyors.
Modular design allows individual part replacement.
Wear-resistant alloy chains last 5-8 years.
Optimized flights reduce power consumption.
Handles powders to small lumps effectively.
Supports real-time tracking for smart management.
Our Service Process
As one of China’s leading chain conveyor manufacturers, we provide high-quality, durable screw conveyor solutions for various industries. Our comprehensive service ensures efficient material handling solutions with reliable performance and responsive technical support.
We analyze your production requirements to provide customized equipment selection ensuring perfect system compatibility.
Our senior engineers create personalized solutions with optimized system configuration based on your specifications.
Detailed pricing covering equipment, installation, shipping and after-sales service with no hidden costs.
Strict quality control at our ISO-certified factory guarantees reliable equipment performance.
Dedicated logistics team ensures on-time delivery with complete installation guidance and training.
24/7 technical support with scheduled maintenance alerts and fast spare parts delivery.
What is a Chain Scraper Conveyor?
The Chain Scraper Conveyor is a highly efficient and reliable continuous conveying equipment designed for handling powdered, granular, and bulk materials. Widely used in industries such as cement plants, mining, metallurgy, chemical, power generation, and grain processing, it is suitable for harsh working conditions including high temperatures, high abrasion, and high dust environments.
Our chain scraper conveyor features a high-strength chain and wear-resistant scraper structure, ensuring long service life, low maintenance, and high load capacity to meet the material handling needs of various industries.
Own Factory, High Quality Manufacturing Power
As a professional cement equipment manufacturer with 10 years of industry experience, Darko combines innovative engineering with reliable production capabilities. Our ISO-certified facility produces 400+ dust collection systems and 450+ conveying systems annually, serving 500+ global clients with complete solutions from cement silos to dust control systems.
Backed by patented technologies and an experienced R&D team, we specialize in customized, non-standard designs to meet diverse project requirements. Equipped with advanced manufacturing facilities and strict quality control, we ensure every product meets the highest international standards while delivering cost-effective, environmentally friendly solutions for cement plants and industrial applications worldwide.
Related Product
As a leading manufacturer of material handling systems, we provide a complete range of conveying solutions to optimize your production line. In addition to chain scraper conveyor, explore our high-performance conveying equipment:
Ideal for horizontal or inclined transportation of bulk materials with low energy consumption. Features durable construction, smooth operation, and customizable lengths/widths for mining, grain, and packaging applications.
Specifically designed for combustible dust environments with integrated explosion-proof devices and pressure relief systems, compliant with ATEX standards. Perfect for chemical, pharmaceutical, and metalworking industries.
Enclosed structure effectively prevents dust and leakage, specially designed for powders and small particles. Can be integrated into automated conveying systems, widely used in chemical and food processing industries.
Heavy-duty version for larger-capacity conveying of granular or semi-fluid materials. Features enhanced torque resistance and wear-resistant coatings for cement, fertilizer, and wastewater treatment plants.
Professional Customized Conveying System Solutions
Precision-engineered material handling systems tailored to your production requirements
We provide complete standard and custom conveying systems tailored to your material handling requirements. Our engineering team designs reliable bucket elevators, belt conveyors, screw conveyors and pneumatic systems using premium components and smart configurations. All equipment is manufactured in-house with strict quality control to ensure seamless integration with your operations. We optimize each system for your specific materials, capacity needs and facility layout to deliver maximum efficiency and longevity.
Our conveying systems come with comprehensive worldwide service and maintenance support. From installation supervision to operator training and 24/7 technical assistance, we ensure your equipment maintains peak performance. We offer remote monitoring options, preventive maintenance programs and genuine spare parts to minimize downtime. Our durable, wear-resistant designs coupled with responsive after-sales service guarantee smooth material handling operations throughout your system’s lifecycle.
More about Chain Conveyor
By fully understanding the relevant technical parameters and structural technology of the chain conveyor, you will have a clearer understanding of the performance advantages and application value of the equipment.
- Specification Parameters
- Technical Specifications
- Applications
- Darko’s highlight
| Name Specifications | X(G)Z- 06 | X(G) Z-08 | X(G) Z-10 | X(G) Z-12 | X(G)Z- 14 |
| Conveying Capacity (t/h) | 100-300 | 200-500 | 300-600 | 400-800 | 500-1000 |
| Chain Speed (m/s) | 0.48-0.76 | 0.48- 0.76 | 0.48 0.76 | 0.48- 0.76 | 0.48-0.76 |
| Conveying Distance (m) | 6.7-64.3 | 6.7-64.3 | 6.7-64.3 | 6.7-64.3 | 6.7-64.3 |
| Material Particle Size (mm) | <200 | <300 | <300 | <300 | <300 |
| Scraper Width (mm) | 600 | 800 | 1000 | 1200 | 1400 |
| Scraper Spacing | 1024 | ||||
| Parameter | Specification |
|---|---|
| Capacity | 5–500 m³/h |
| Conveying Distance | 5–100 m (customizable) |
| Chain Speed | 0.1–0.5 m/s |
| Material Temperature | ≤600°C (high-temperature version available) |
| Inclination Angle | 0°–45° (adjustable based on material properties) |
| Motor Power | Customized (3–75 kW) |
| Chain Material | Alloy Steel / Stainless Steel (corrosion-resistant option available) |
| Scraper Material | Wear-Resistant Steel / UHMW-PE (low-friction option available) |
✔ Cement Plants – Clinker, raw meal, fly ash
✔ Food Processing – Flour, grains, sugar
✔ Chemicals – Fertilizers, plastics, PVC
✔ Mining – Coal, ore, sand
| Characteristics | Description |
| Large carrying capacity | A scraper conveyor has the advantages of small size and large conveying capacity. It only needs 1/5 of the space of the belt conveyor or 2/3 of the space of the screw conveyor to transport the same flow of materials. Conveying capacity is 6m3/h~500m3/h. |
| Long service life & low cost | The scraper conveyor chain made of alloy steel by scientific heat treatment processing has a normal life of more than 5 years. And the life of the roller on the chain is not less than 1 year (the most vulnerable part of the whole machine). This ensures that the annual maintenance is less than once, which greatly reduces the use cost and improves the production efficiency. |
| Low energy consumption | The chain conveyor uses the internal friction of the material to convert most of the work done by the moving parts into effective work. The use of chain hook transportation greatly reduces the resistance of the material to it, so that its energy consumption is only 30% to 60% of the screw conveyor. |
| Sealed and secure | The whole scarper machine is fully sealed, making the dust seamless drilling, waterproof and rainproof, easy to operate, safe and reliable operation. |
| Flexible process | The chain machine allows a variety of types of inlet and outlet at any location in the casing. It can be elevated, ground or pit arrangement and can be mounted horizontally or uphill (≤15°). |
Suitable for powdered, granular, and bulk materials such as cement, ores, coal, fertilizers, and grains.
Consider factors like capacity, material characteristics, temperature, and conveying distance. Our engineers provide model selection support.
Routine maintenance every 3-6 months, including chain tension inspection, scraper wear check, and lubrication of key components.
Yes, we provide explosion-proof motors and anti-static structures for flammable and explosive environments.
Related Product
High-efficiency grinding with adjustable fineness, ideal for cement production.
Efficient industrial dust collection with simple, low-maintenance design.
Why Choose Our Chain Scraper Conveyor?
🔹 Custom Solutions – Tailored designs for special dimensions, materials, and drive systems based on customer needs.
🔹 Global Supply – Exported to Europe, Americas, Southeast Asia, the Middle East, and more, ensuring reliable quality.
🔹 Professional Support – Provides technical consultation, installation guidance, and after-sales service in one package.
🔹 Cost-Effective – Compared to similar products, our chain scraper conveyor offers longer lifespan, lower energy consumption, and reduced maintenance costs.
