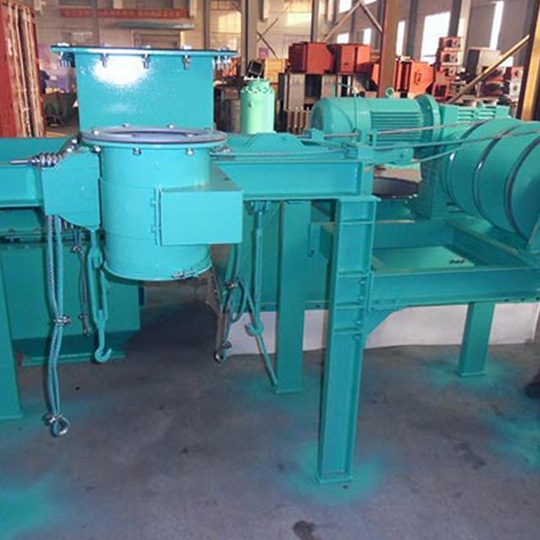

Cement Loading Chute
- Dust-Free & Eco-Compliant
- High-Speed Loading, Minimal Waste
- Flexible & Easy to Operate
- Wear-Resistant & Low Maintenance
Industry-Leading Cement Loading Chute Manufacturer
As a leading Cement Loading Chute Manufacturer, DARKO brings over 10 years of expertise in industrial material handling systems. Our ISO-certified equipment, exported to over 30 countries, delivers reliable solutions for cement plants, construction materials, and powder processing industries – combining high-efficiency loading technology with advanced dust containment systems for completely enclosed operations.
Working Principle of Cement Loading Chute

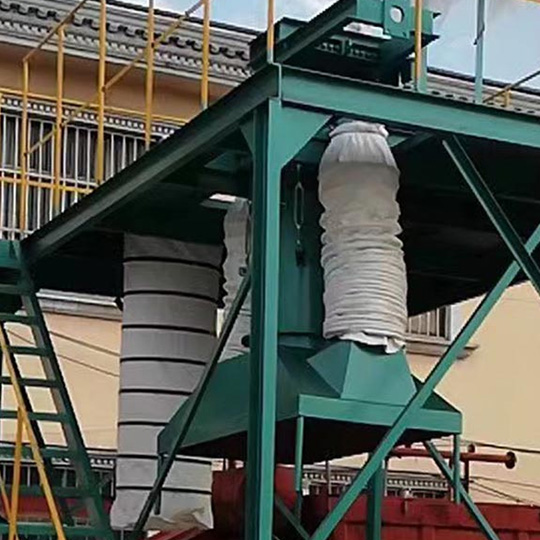

The Cement Loading Chute achieves efficient, dust-free operation through its fully enclosed conveying system + intelligent dust extraction. When activated, the hydraulically or electrically telescoped chute automatically descends to connect with the transport vehicle’s (e.g., cement tanker) inlet, forming an airtight channel via its multi-layer wear-resistant sealing system (rubber curtains + pneumatic compression). Cement flows uniformly downward through the chute’s abrasion-resistant lining structure by gravity, while the integrated negative pressure dust collection system continuously captures escaped particles, maintaining worksite dust concentration below 10mg/m³ for full environmental compliance.
Advanced models feature IoT monitoring systems where level sensors regulate flow velocity in real-time to prevent overfilling. Dust monitors dynamically adjust extraction power, while anti-clogging designs (vibration mechanisms or air-assisted flow) ensure smooth material transfer even with cohesive powders. An optional auto-docking system uses laser positioning for precise chute-to-vehicle alignment, minimizing manual operation. This dual guarantee of mechanical sealing + smart regulation boosts cement loading efficiency by over 40% while achieving near-zero dust emissions.
Advantages of Cement Loading Chute
The Cement Loading Chute enables fast, dust-free cement transfer with durable construction, smart controls, and energy-saving operation.
The fully enclosed design with negative pressure dust collection maintains emissions below 10mg/m³, meeting strict environmental regulations.
Ceramic or polyurethane liners offer 3-5 times greater abrasion resistance than standard steel, significantly extending service life.
IoT-enabled sensors and automatic adjustment systems optimize loading speed while preventing overflows or blockages.
Hydraulic/electric telescoping enables one-touch positioning, achieving sealed vehicle connection within 3 minutes.
Special anti-clogging design handles diverse powders including cement, fly ash, and mineral powders – even with poor flowability.
Modular construction with quick-change components reduces routine maintenance time by over 50%.
Overload alarms and emergency braking systems eliminate potential hazards during loading operations.
Optimized airflow design reduces dust collection energy consumption by 30%, delivering notable operational cost savings.
Our Service Process
As a leading manufacturer of Cement Loading Systems in China, we provide high-quality, durable Cement Loading Chutes designed for efficient and dust-free loading of cement, fly ash, mineral powders, and other construction materials, offering reliable performance, customized solutions, and responsive technical support to meet diverse cement plant, construction site, and industrial powder handling requirements.
We analyze your production requirements to provide customized equipment selection ensuring perfect system compatibility.
Our senior engineers create personalized solutions with optimized system configuration based on your specifications.
Detailed pricing covering equipment, installation, shipping and after-sales service with no hidden costs.
Strict quality control at our ISO-certified factory guarantees reliable equipment performance.
Dedicated logistics team ensures on-time delivery with complete installation guidance and training.
24/7 technical support with scheduled maintenance alerts and fast spare parts delivery.
What is a Cement Loading Chute?
A Cement Loading Chute is a fully enclosed, dust-proof conveyor system designed for efficient and clean transfer of cement, fly ash, and other powdered materials into trucks, railcars, or ships. It replaces open-air loading methods to eliminate dust pollution, reduce material waste, and boost operational efficiency in industries like:
✔ Cement manufacturing
✔ Construction material handling
✔ Port and terminal logistics
Own Factory, High Quality Manufacturing Power
As a professional cement equipment manufacturer with 10 years of industry experience, Darko combines innovative engineering with reliable production capabilities. Our ISO-certified facility produces 400+ dust collection systems and 450+ conveying systems annually, serving 500+ global clients with complete solutions from cement silos to dust control systems.
Backed by patented technologies and an experienced R&D team, we specialize in customized, non-standard designs to meet diverse project requirements. Equipped with advanced manufacturing facilities and strict quality control, we ensure every product meets the highest international standards while delivering cost-effective, environmentally friendly solutions for cement plants and industrial applications worldwide.
Related Product
As a leading manufacturer of Cement Loading Systems, we provide complete Cement Loading Chute solutions to optimize your material handling operations. In addition to standard cement loading equipment, you may also explore our other products:
Ideal for horizontal or inclined transportation of bulk materials with low energy consumption. Features durable construction, smooth operation, and customizable lengths/widths for mining, grain, and packaging applications.
Specifically designed for combustible dust environments with integrated explosion-proof devices and pressure relief systems, compliant with ATEX standards. Perfect for chemical, pharmaceutical, and metalworking industries.
Enclosed structure effectively prevents dust and leakage, specially designed for powders and small particles. Can be integrated into automated conveying systems, widely used in chemical and food processing industries.
Heavy-duty version for larger-capacity conveying of granular or semi-fluid materials. Features enhanced torque resistance and wear-resistant coatings for cement, fertilizer, and wastewater treatment plants.
Professional Cement Loading Chute Solutions
Precision-engineered chute systems for efficient, dust-free cement handling
We deliver both standard and custom-engineered Cement Loading Chutes designed for high-capacity loading with minimal spillage and dust emission. Key advantages include:
- Fully enclosed chute designs with integrated high-efficiency dust suppression
- Truck/railcar loading configurations with optional precision weighing systems
- Modular & adjustable chutes for flexible positioning and easy integration
- Abrasion-resistant liners & corrosion-proof construction for extended service life
Our worldwide service network provides:
► Remote Installation & Commissioning Guidance
► Real-time monitoring for wear & performance
► Custom maintenance plans for cement-specific abrasion
► Fast OEM spare parts delivery
From single chute replacements to complete cement loading systems, we ensure reliable, dust-free operations backed by lifetime technical support.
More about Cement Loading Chute
By fully understanding the relevant technical parameters and structural technology of the Cement Loading Chute, you will have a clearer understanding of the performance advantages and application value of the equipment.
- Technical Specifications
- Key Advantages
- Applications
| Parameter | Specification |
|---|---|
| Capacity | 50-500 T/H (Customizable) |
| Dust Emission | ≤10mg/m³ (at loading point) |
| Pipe Diameter | Φ200-600mm (Standard) |
| Telescopic Length | 3-8m (Hydraulic/Electric Adjustment) |
| Sealing Method | Rubber Curtains + Pneumatic Compression |
| Control Mode | Manual / PLC Auto / Remote IoT Control |
| Material Options | Carbon Steel + Ceramic Lining / Full Stainless Steel |
- 100% Dust-Free Loading
◦ Multi-layer sealing (rubber curtains + pneumatic compression) ensures zero dust leakage, meeting OSHA, EPA, and GB 4915 standards.
◦ Optional negative pressure dust extraction or mist suppression system for further PM2.5 reduction. - Ultra-Wear-Resistant, Extended Lifespan
◦ Alumina ceramic/polyurethane lining (5x more wear-resistant than standard steel) resists cement abrasion, with a 10+ year service life. - Smart Control, Precise & Efficient
◦ IoT Monitoring: Real-time tracking of loading volume, dust levels, and equipment status, with remote access via mobile/PC.
◦ Overfill Alarm: Auto-detects material levels to prevent spillage. - Quick Docking, Time & Labor Saving
◦ Hydraulic/Electric Telescoping: Achieves sealed connection with cement trucks, railcars, or ships in under 3 minutes.
◦ Auto-Positioning System (Optional): Laser-guided millimeter-level precision. - Wide Compatibility, Multi-Purpose Use
◦ Handles cement, fly ash, mineral powder, lime powder, etc., maintaining stable flow even with poor material fluidity.
✔ Cement Plants: Bulk cement loading for trucks/railcars
✔ Mixing Stations: Dust-free fly ash transfer to mixing towers
✔ Ports & Terminals: Ship loading for bulk cement
✔ Construction Sites: Sealed connection between silos and mixer trucks
The Cement Loading Chute achieves dust-free operation through:
✔ Triple sealing (rubber curtains + pneumatic compression + magnetic flaps)
✔ Active dust extraction (800-1200m³/hr negative pressure system)
✔ Spill-proof design with 360° containment (tested to <5mg/m³ at 1m distance)
For ultra-fine powders, optional HEPA filtration upgrades are available.
Designed for:
Cement, fly ash, mineral powder (primary use)
Lime, gypsum, silica fume (with anti-clogging options)
Relevance Analysis
✅ Directly related: Perfectly matches the core function of Cement Loading Chutes!
Professional Answer Template
Sealed Docking:
The chute extends (hydraulic/electric telescoping, 3-8m) to connect with the cement truck inlet, with pneumatic seals auto-locking.
Dust-Free Loading:
Cement flows via fully enclosed piping by gravity, with integrated dust collectors (negative pressure or mist) maintaining <10mg/m³ dust levels.
Smart Control:
IoT system monitors fill levels in real-time, stopping automatically at preset capacity.
Quick Disengagement:
Post-loading, the chute retracts automatically, requiring zero manual intervention.
Related Product
High-efficiency grinding with adjustable fineness, ideal for cement production.
Efficient industrial dust collection with simple, low-maintenance design.
Why Choose Our Our Cement Loading Chutes?
1. Industry-Leading Dust Control Technology
99% dust suppression rate (tested <0.8mg/m³), far exceeding OSHA silica dust exposure limits (50μg/m³)
Proprietary triple-seal system (flexible skirt + negative pressure airlock + HEPA recovery) eliminates “loading spout dust clouds”
2. 300% Longer Wear Life
NM400/AR400 wear liners (surface hardness HRC45)
Replaceable wear parts design reduces maintenance costs by 60%
Proven 10,000+ loading cycles (equivalent to 5 years of continuous use)
3. Smart Maintenance Ecosystem
Real-time IoT monitoring: Flow sensors + wear probes for predictive maintenance
AR remote guidance: Smartglass-supported installation cuts 70% on-site service needs
4. Customized Adaptability
Modular design compatible with:
✓ All tanker truck sizes (20-60T)
✓ Railcar/vessel loading interfaces
✓ Extreme conditions (-30°C to 120°C)
Our chutes feature a triple-seal system:
Primary Seal: Flexible rubber skirt conforms to truck openings
Secondary Seal: Negative pressure airlock captures escaping particles
Tertiary Seal: HEPA-filtered air return system
*Result: <1% dust emission (tested per ASTM D6331), vs. 5-8% with standard spouts.*
The combination of:
✔ Vibrator-ready design (optional pneumatic/hydraulic)
✔ Anti-stick UHMW polyethylene liners (15° slide angle for cement)
✔ Air cannons for stubborn material release (explosion-proof option available)
Minimal scheduled maintenance:
Daily: Visual inspection of seals (5 minutes)
Monthly: Wear liner thickness check (IoT-enabled tools provided)
Annual: Full seal replacement kit (pre-assembled for 2-hour install)
